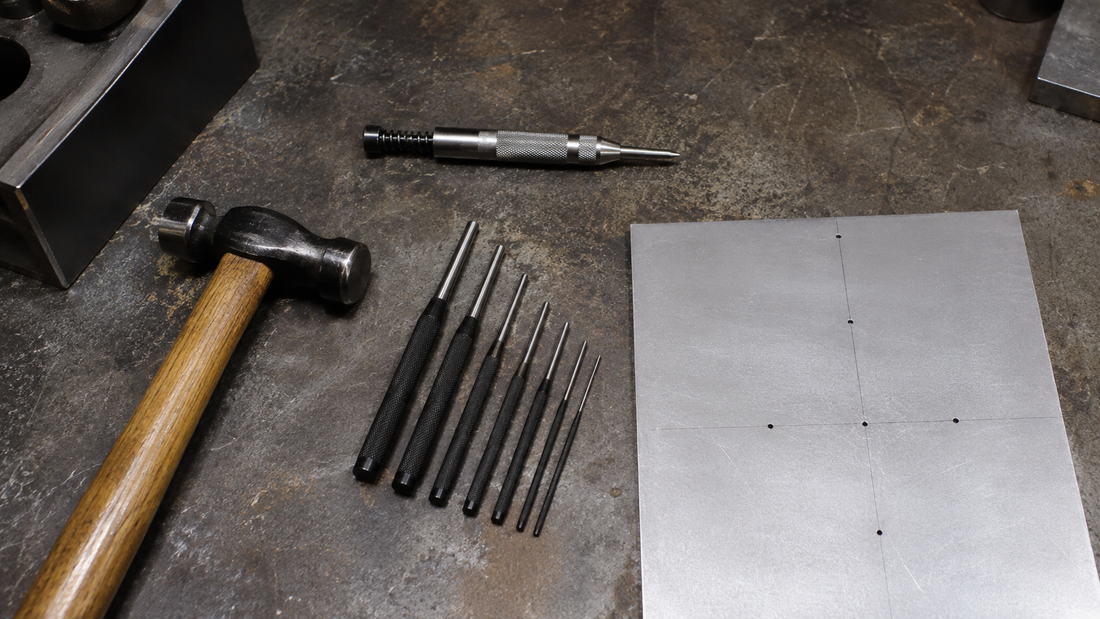

| Tool | Working tip | Typical purpose |
|---|---|---|
| Manual center punch | Pointed marking tip | Create a drill-start dimple with controlled hammer force |
| Automatic center punch | Pointed tip and internal impact mechanism | Create a mark by pressing as instructed |
| Pin punch | Straight tip suited to the pin | Drive a pin with supported work and an exit path |
| Specialized roll-pin punch | Tip intended for a hollow roll pin | Use only for the corresponding pin design |
Use a center punch for layout
Mark the intended location accurately, support the workpiece and create a dimple suitable for the material and drilling method. A deeper mark is not always better, especially in thin sheet or brittle material. For an automatic punch, use the documented adjustment and pressing method; do not hammer the tool unless its instructions permit that.

Use the correct pin punch for service
Identify whether the pin is solid, tapered, rolled, spring-loaded or retained by another feature. The assembly may specify a removal direction and a specialized starter or roll-pin tool. Support the surrounding part and provide room for the pin to exit. A center-punch point can deform a pin instead of driving it evenly.
Choose size and support before applying force
Select a punch whose tip can bear properly on the pin without jamming against the hole. Do not assume that every flat punch suits every roll pin. Keep the punch aligned, inspect it for damage and follow the hammer and tool instructions. Stop if unexpected resistance suggests a hidden retainer, wrong direction or unsuitable support.
A punch mark does not solve every drilling problem
An incorrect mark, worn bit, unsuitable speed, unsupported material or poor clamping can still cause the drill to wander. Recheck layout and setup before deepening the dimple. Use an appropriate drilling guide when accuracy or material conditions require one.
Before you begin
- Identify whether the task is marking or moving an existing pin.
- Read the assembly’s service requirements for pin removal.
- Select the correct punch type and dimensions.
- Clamp or support the work and clear the exit path.
- Wear required eye protection and stop if the tool or part begins deforming.
Compare the available options
Use the catalog to compare the relevant product specifications. Confirm the requirements of your equipment and installation before ordering. The product cards above show current pricing and availability.
Frequently asked questions
Can a center punch drive out a pin?
Do not substitute its pointed tip for a correctly selected pin-driving tool.
Should I hammer an automatic center punch?
Use its instructions. Ordinary automatic punches are actuated by their internal pressing mechanism.
Does one pin punch suit every roll pin?
No. Identify the pin and use the specified tip geometry and service method.
Limits and when to stop
This guide does not establish a disassembly procedure for a particular machine. Follow service instructions and isolate stored energy before work. Replace damaged punches; do not strike chipped, bent or mushroomed tools or force a retained pin.
