Lippage — where one tile edge sits slightly higher than its neighbor — is the single most common flaw in a first-time tile job, and it's almost entirely preventable. A tile leveling system does the job that used to require years of trowel experience: it holds every tile at the exact same height while the adhesive cures, so you get a flat, professional-looking floor even on your very first attempt.
What’s in this guide
How a tile leveling system actually works
The system has three parts working together. A flat base plate goes underneath the tile joint, straddling the gap between two adjacent tiles. A reusable cap threads onto the base plate from above and, as you tighten it, pulls the two tile edges down to the exact same height — correcting any unevenness in the subfloor or slight differences in tile thickness. Once the adhesive sets (usually 24–48 hours), you snap the cap off at a scored breakpoint, leaving the base plate embedded under the grout line.
The base plate thickness also doubles as your spacer, so the same piece that levels the tile also keeps your grout lines consistent across the whole floor.
What you’ll need before you start
Beyond the leveling system itself, gather these before you mix any adhesive:
- Tile leveling spacer kit (base plates + caps + protection plates), sized to your tile format
- Notched trowel matched to your tile size (larger tiles need a bigger notch for adequate adhesive coverage)
- Thin-set mortar or tile adhesive rated for your tile type
- Rubber mallet for seating tiles
- Tile spacers if you're not relying on the leveling system's built-in spacing alone at the corners
- Leveling wrench or pliers for tightening caps evenly
- Knee pads — you'll be down at floor level for a while
Choosing the right base plate thickness matters as much as the tool itself: 1/16" plates suit tighter grout lines on smaller format tiles, while 1/8" plates give more forgiving spacing that's often preferred for large format floor and wall tiles.
Get a complete kit with base plates, reusable caps, and protection plates in one box
Shop Tile Leveling Systems →Step-by-step installation
Step 1 — Prep the surface and dry-lay your first row
Clean the subfloor and dry-lay a row of tiles (no adhesive yet) to confirm your layout and cut sizes before committing. This is also when you decide your starting point and working direction.
Step 2 — Spread adhesive and set the first tile
Comb the thin-set with your notched trowel, working in small sections you can tile before the adhesive skins over. Set the first tile and seat it firmly with a slight twisting motion, then tap it level with a rubber mallet.

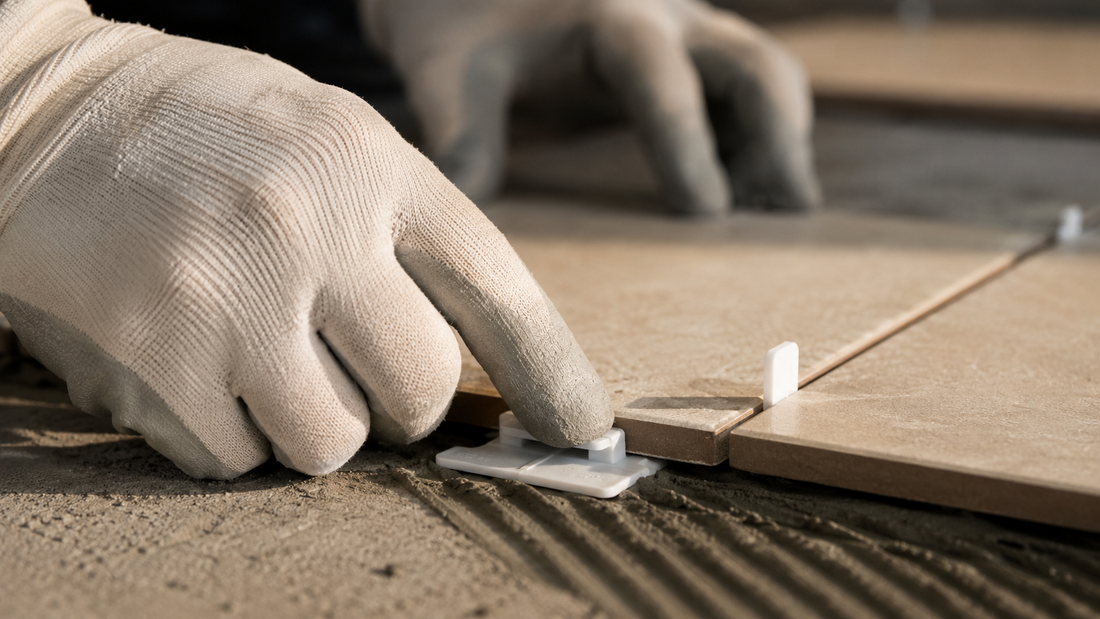

Step 3 — Insert base plates at each joint
Slide a base plate into the joint between the tile you just set and where the next tile will go, positioned about 2–3 inches from each corner and at least one in the middle of longer edges. The flat wing of the plate sits under both tile edges.
Step 4 — Set the adjacent tile and thread the cap
Place the next tile so its edge lines up over the exposed post of the base plate, then thread the reusable cap onto the post by hand until it's snug against the tile surface.
Step 5 — Tighten evenly to pull tiles level
Use your leveling wrench or pliers to tighten each cap a small amount at a time, working across all the caps on that section rather than fully tightening one before moving to the next. This even, gradual tightening is what actually pulls both tile edges into alignment without over-stressing one side.
Step 6 — Repeat across the floor
Continue tile by tile, checking periodically with a level or straightedge laid across several tiles to confirm the surface is staying flat as you go, not just at each individual joint.
Removing the caps and cleaning up
Let the adhesive cure fully — check your thin-set's technical data sheet, but 24–48 hours is typical before foot traffic or cap removal. Once cured, kick or tap each cap sideways with a rubber mallet or your foot; they're designed to snap cleanly at the scored breakpoint, leaving only the flat base plate behind, buried under where your grout will go.
Save the caps — unlike the base plates, they're reusable across future projects. Sweep and vacuum the floor before grouting to clear any small plastic fragments from the snapped caps.
Common first-timer mistakes
Skipping the dry layout
Committing to adhesive before confirming your cut sizes and pattern is how first-timers end up with an awkward sliver of tile at the far wall. Always dry-lay first.
Over-tightening one cap before moving on
Cranking one cap fully tight before setting neighboring caps pulls that corner disproportionately, which can actually introduce lippage rather than prevent it. Tighten gradually and evenly across the whole working section.
Using the wrong base plate thickness for the format
A thin 1/16" plate on a large format tile can undersize the joint relative to the tile's natural warp; oversized plates on small mosaic-format tile create grout lines that look out of proportion. Match the plate to the tile size and the joint width you actually want.
Removing caps too early
Pulling caps before the adhesive has fully cured risks shifting tiles out of alignment right before grouting locks everything in place. Follow the adhesive manufacturer's cure time, not just a guess.
Forgetting protection plates on delicate finishes
Polished or honed stone tiles can scratch from direct contact with the leveling wrench or cap edges. A thin protection plate under the wrench prevents marring the tile surface during tightening.
Frequently asked questions
Can I use a tile leveling system on wall tile, not just floors?
Yes — the same base plate and cap system works on walls, and it's particularly useful there since gravity makes uneven wall tile edges more visible at eye level. The installation steps are identical.
Do I still need spacers if I'm using a leveling system?
The base plate itself acts as your spacer at each joint where it's placed, so for most layouts you won't need separate spacers except possibly at corners or edges where a base plate doesn't naturally sit.
What size base plate should a first-timer buy?
1/8" is the more forgiving choice for a first project — it's the standard spacing for most large and mid-size format tiles and gives more visual tolerance for minor grout line variation than a tighter 1/16" gap.
How many base plates do I need per tile?
Plan on one base plate per joint edge, roughly 2–3 per side of a standard-size tile depending on length, plus one at any center point on longer edges. Buying a kit sized generously for your square footage avoids running out mid-project.
Bottom line
A tile leveling system turns the hardest part of tiling — keeping every edge perfectly flush — into a mechanical, repeatable process instead of a skill you need years to develop. Dry-lay first, insert base plates at every joint, tighten evenly across the section rather than tile by tile, and let the adhesive cure fully before snapping off the caps. Follow that sequence and your first tile floor will look like it was laid by someone with a decade of experience.
