How to Fix a Broken Extension Cord Without Buying a New One

A chewed-through, run-over, or accidentally-cut extension cord isn’t automatically trash. In most cases you can splice it back together in about fifteen minutes with a proper wire splice and a waterproof heat shrink butt connector — no soldering iron, no electrical tape mummy-wrap, and no trip to the store for a $25 replacement.

Is your extension cord actually worth fixing?

Before you grab the wire strippers, take thirty seconds to check whether this is a repair or a replacement. A single clean cut or a spot where a mower, trimmer, or falling branch nicked the jacket is an easy fix. Splicing is not the right call if the cord shows widespread cracking along its length, if the damage is inside the molded plug head itself, or if you can see scorch marks anywhere — that indicates the cord has already overheated once and the insulation is compromised beyond the visible spot.

It also matters what the cord is rated for. A light-duty 16-gauge indoor cord that got cut once in the middle is worth five minutes of your time. A heavy 10-gauge cord feeding a table saw or an air compressor is worth doing carefully and rated correctly — that’s exactly the kind of repair covered below.

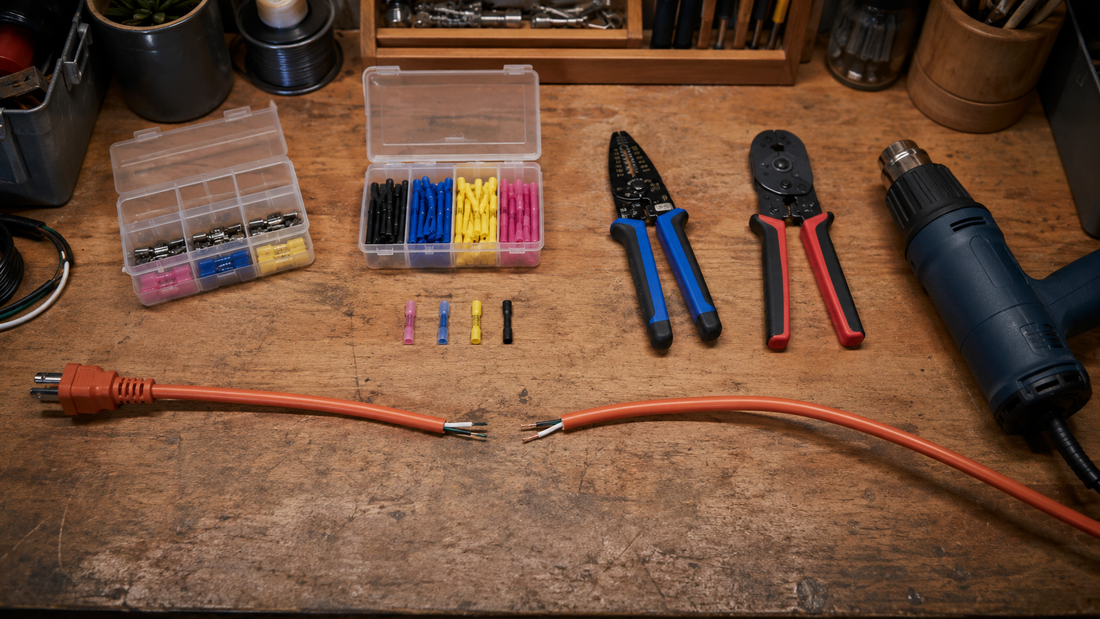

What you’ll need

The difference between a repair that lasts for years and one that fails in a month usually comes down to two things: matching the connector to the actual wire gauge, and sealing the splice instead of just twisting the wires and wrapping tape around them. Here’s the short list:

• Wire strippers (a self-adjusting pair makes gauge-matching painless)
• Diagonal cutters or a utility knife to clean up the damaged section
• Heat shrink butt connectors sized to your cord’s wire gauge
• A heat gun (a hair dryer will not get hot enough to fully seal the connector)
• A crimping tool, or heavy pliers if you don’t have one

Skip electrical tape as the primary seal. Tape degrades with UV and moisture within a season outdoors, and it does nothing to protect the actual copper-to-copper connection from oxidizing over time. A heat shrink connector with an internal adhesive lining seals the splice the same way the factory jacket sealed the original wire.

How to splice the wires step by step

An extension cord has either two or three conductors inside — hot, neutral, and (on grounded cords) ground. Whatever you do to one wire, you do identically to the other two, and you always stagger the splice points so the finished repair doesn’t end up as one thick, hard-to-bend lump.

Step 1 — Cut out the damaged section

Unplug the cord first. Cut a few inches past the damage on both sides so you’re working with clean, undamaged insulation and wire.

Step 2 — Separate and stagger the conductors

Split the outer jacket back a couple of inches on each side, then cut each of the two or three inner wires to a slightly different length before stripping. Staggering keeps the connectors from bunching up at the same point, so the repaired section stays flexible instead of forming a stiff knot.

Step 3 — Strip and twist

Strip about ½ inch of insulation from each wire end. Twist the strands of each matching pair together tightly so no loose strands stick out — a stray strand touching the wrong wire inside the housing is exactly how repairs turn into a short.

Step 4 — Insert and crimp

Slide the twisted wire into the correctly sized heat shrink connector until it hits the center stop, then crimp firmly on the metal barrel only. Give it a firm tug — if the wire pulls out, redo the crimp with a fresh connector rather than trusting a loose one.

Sealing the splice so it actually lasts

Crimping makes the electrical connection; heat sealing is what keeps water, dust, and oxidation out for years afterward. Run the heat gun evenly around the connector from the center outward, watching for the adhesive lining beading out at both ends — that’s your visual confirmation the seal is complete, not just the outer shell shrinking.

1. Hold the heat gun 1–2 inches from the connector, moving constantly — never hold it still on one spot
2. Rotate the wire so heat reaches all sides evenly
3. Watch for the shell to shrink tight and the adhesive to visibly bead at both ends
4. Let it cool untouched for a minute before flexing the repair

Common mistakes and how to avoid them

Using the wrong connector size

A connector rated for 16 AWG won’t crimp properly onto a 12-gauge cord — you’ll get a loose, high-resistance connection that heats up under load. Always match the connector range to the cord’s actual gauge, which is usually printed on the jacket itself.

Skipping the twist before crimping

Pushing loose, untwisted strands into the connector leaves gaps and stray wires that can short against the housing. Twist first, every time.

Not staggering the splice points

Splicing all conductors at exactly the same point creates a stiff, bulky section that cracks with repeated flexing. Stagger each wire’s cut point by an inch or two.

Overheating with an open flame

A lighter or torch can scorch the insulation before the connector fully seals. Use a proper heat gun and keep it moving.

Relying on tape instead of a sealed connector

Electrical tape alone doesn’t stop moisture from working into the splice over time, especially outdoors. It’s fine as a temporary fix, not a permanent one.

Skipping the ground wire

On a three-prong cord, the ground conductor doesn’t carry current in normal use, which makes it tempting to just twist and tape it. Splice and seal it exactly like the hot and neutral — it’s your protection if something else fails.

Frequently asked questions

Bottom line

A cut extension cord doesn’t have to go in the trash. Match the connector to the wire gauge, twist and stagger the splices, crimp firmly, and seal fully with a heat gun — and the repair will hold up as well as the cord did before the damage. Keep a set of assorted heat shrink butt connectors in the garage or truck, and the next cut cord becomes a fifteen-minute fix instead of an unplanned trip to the store.
