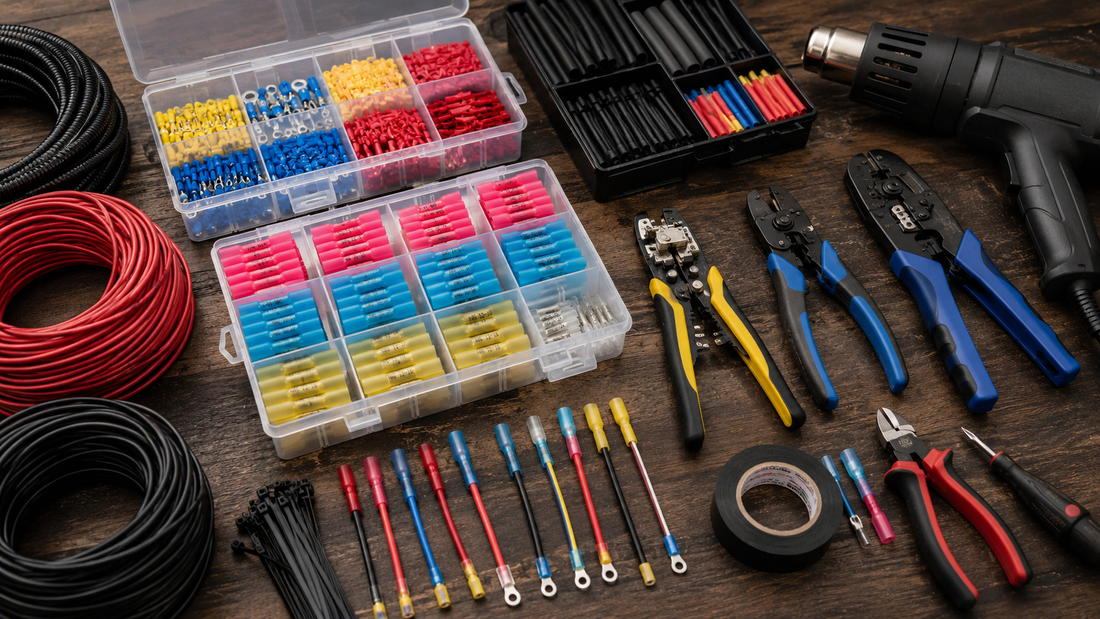

Bad wire splices cause more electrical headaches than any single component on a vehicle. A connector that lets in moisture turns into a corroded green mess in under 18 months, and finding the failure later costs more than the part ever cost. This guide covers everything you need to know about heat shrink wire connectors — why they outperform standard vinyl crimps, how to choose the right AWG and terminal type, and how to install them so they actually seal.
What's in this guide
The four types of wire connectors and when to use each
Walking into a parts store you see dozens of terminal shapes, but they all fall into four functional categories. Knowing which to grab saves a second trip and a failed splice.
Butt connectors
A cylindrical barrel that joins two wires end-to-end with a permanent splice. Used when you need to extend a wire run, repair a damaged section, or tap into an existing harness. Butt connectors are the most-used connector type in automotive and trailer wiring — think every time a stereo install needs to bypass a factory plug, or an accessory needs to splice into existing power.
Ring terminals
Closed loop terminal that bolts down to a stud, ground point, battery post, or terminal block. The full closed ring means the terminal cannot pull off the stud even if the nut loosens — critical for battery cables, ground connections, and any high-vibration mounting point. Sized by stud diameter: #6, #8, #10, 1/4", 5/16", 3/8", and 1/2" are the common sizes.
Fork (spade) terminals
U-shaped open terminal that slides onto a stud without removing the nut completely — just loosen, slip the fork under, retighten. Faster than ring terminals for service work but less secure on high-vibration applications. Common in fuse blocks, terminal strips, and accessory wiring where the connection might need to be disconnected for service.
Male and female spade (quick disconnect) connectors
Two-piece connectors that allow the wire to be unplugged and reconnected without cutting. Used everywhere a connection needs to be field-serviceable: automotive sensors, appliance wiring, motorcycle wiring, modular accessory installs. Sized by tab width — typically 1/4" for most automotive applications.
Why heat shrink seals beat vinyl crimps
A standard vinyl insulated crimp connector is a piece of nylon or vinyl tubing covering a copper crimp barrel. It costs pennies. It also has zero environmental sealing — the moment you crimp it, there's a gap between the wire's outer insulation and the connector's insulation. Air, water, oil, salt spray, road grime — all of it gets in.
A heat shrink connector solves this with a three-layer construction:
- Tinned copper crimp barrel. The actual electrical connection, plated with tin to resist corrosion
- Inner adhesive lining. A meltable polymer that flows when heated, filling all gaps
- Outer polyolefin sleeve. Shrinks to about 50% of its original diameter when heated, locking everything together
When you hit it with a heat gun, the sleeve shrinks tight, the adhesive flows around the wire insulation and crimp barrel, and as it cools, you get a permanent waterproof seal that's actually stronger than the original wire insulation.
What you save in practice
A failed splice in a vehicle's headlight harness took me three hours to find. The connector was a 30-cent vinyl crimp. The labor cost was $300. The whole job could have been done once with a 60-cent heat shrink connector. — Comment from a returning customer
The math on heat shrink is straightforward: a kit of 600 quality heat shrink connectors costs about $45 — 7.5 cents per connector. A vinyl bag of the same count is $15 — 2.5 cents per connector. The 5 cent difference per splice is rounding error compared to a single failed connection that drives you back to the truck or boat.
AWG sizing and color coding explained
Every connector is built for a specific wire gauge range. Using the wrong size connector is the single most common reason crimps fail — too big and the crimp is loose, too small and the wire doesn't fully seat.
Standard color coding
The industry standard for insulated terminal color matches the AWG range of the connector. Once you know the code, you can identify the right connector across any brand without reading labels:
| Color | AWG Range | Typical Use |
|---|---|---|
| Red | 22–16 AWG | Sensor leads, low-current accessory wiring, dome lights, signal wires |
| Blue | 16–14 AWG | General automotive primary wire, trailer wiring, fuel pump circuits, stereo speakers |
| Yellow | 12–10 AWG | High-current accessories, amplifiers, winches, headlight relays, charging circuits |
How to read the wire gauge on your wire
Most automotive primary wire has the gauge printed every few inches along the insulation. Look for something like "18 GA" or "16 AWG" stamped along the length. If the wire is unmarked, you can measure the diameter of the bare copper strands with calipers and compare to an AWG chart, or use a wire gauge tool — a slotted card or wheel where you find which slot the wire fits exactly.
What happens when you mix sizes
If you've ever had a crimp that looked fine but pulled apart with a moderate tug, you used a connector too large for the wire. The crimp deformed the barrel but didn't squeeze hard enough on the conductor strands to make a gas-tight connection. The opposite — trying to force 12 gauge wire into a red 22–16 connector — just leaves you with cut-off strands and a connector that won't crimp closed.
Heat shrink connector kits with all AWG sizes covered.
Shop Connector Kits →Step-by-step: how to install a heat shrink connector
What you need
- Heat shrink connector of the right AWG
- Wire strippers (with a built-in cutter)
- Ratcheting crimping pliers (for insulated terminals)
- Heat gun (1200°F or higher — hair dryer will not work)
- Gloves (the sleeve gets hot and the adhesive will burn skin)
Step 1 — Strip the wire
Strip about 1/4" to 5/16" of insulation off the wire end. The stripped section should be just slightly longer than the depth of the crimp barrel — a hair too short means the wire doesn't fully engage; too long and bare copper sticks out past the connector. Twist the exposed strands tightly together with your fingers so no whiskers stick out.
Step 2 — Insert the wire
Push the stripped wire fully into the crimp barrel of the connector. You should see the wire just barely showing at the inspection hole on most quality connectors. If the wire isn't going in fully, you either have the wrong AWG or stripped too little insulation.
Step 3 — Crimp
Position the crimping pliers on the metal barrel only — not on the heat shrink sleeve, or you'll deform the sleeve before you heat it. Use the jaw size that matches your connector color (most crimpers have color-coded jaws). Squeeze fully until the ratchet releases (on ratcheting crimpers) or until the crimp is visibly compressed (on standard pliers — firm two-hand squeeze).
Step 4 — Test the crimp
Give the wire a firm tug — not a yank, but a steady pull. A proper crimp will not pull out under hand pressure. If the wire slips even slightly, the crimp is bad. Cut it off and start over with a fresh connector.
Step 5 — Heat the sleeve
Hold the heat gun about 2–3 inches from the connector and move it slowly back and forth across the full length of the sleeve. The polyolefin will visibly shrink and you'll see a small amount of adhesive flow out from each end of the sleeve — that's the seal forming. Stop heating as soon as you see adhesive flow. Over-heating burns the sleeve and can damage the wire insulation.
Step 6 — Let it cool
The seal sets in about 30 seconds. Don't bend or stress the connection during cooling. Once cool, the connection is permanent and waterproof.
Common mistakes that fail splices
Heating before crimping
If you heat the sleeve first, it shrinks tight around the empty barrel and you can't get the wire in. Always crimp first, heat second.
Wrong AWG connector
Eyeballing the wire size and grabbing whichever connector is closest. Take 5 seconds to verify the AWG — it pays for itself in connection reliability.
Cheap crimping tool
The crimping tool matters more than the connector. A $5 multi-tool with a crimper jaw produces inconsistent, under-compressed crimps. A $25 ratcheting crimper for insulated terminals gives uniform crimps every time. If you're building a real automotive electrical kit, this is the first tool to upgrade.
Skipping the heat step
It's tempting to just crimp and move on — the connection works electrically. But without the heat shrink step, you've installed an expensive vinyl crimp. Heat the sleeve. Every time.
Using a lighter or torch
The flame will burn the sleeve and the wire insulation. Heat guns are designed for this — they produce hot air without an open flame. A cheap heat gun is $20 and lasts years.
Crimping the sleeve, not the barrel
If you put the crimper jaws on the colored heat shrink sleeve instead of the bare metal barrel underneath, you crush the sleeve and can't form a proper seal. Slide the sleeve back if needed, or check the connector design — most have the crimp area exposed for this exact reason.
Frequently asked questions
Can I use heat shrink connectors on solid core wire?
No — these connectors are designed for stranded copper wire only. Solid core wire (used in some house wiring) does not deform under crimping pressure and the connection will fail. For solid core, use wire nuts or push-in connectors rated for solid wire.
How hot does the heat gun need to be?
The polyolefin sleeve starts shrinking around 250°F and the adhesive starts flowing around 300°F. A consumer heat gun on its highest setting (typically 1200–900°F) shrinks the sleeve fully in 10–20 seconds per connector. A hair dryer maxes out around 130°F and will not work — don't even try.
Are heat shrink connectors reusable?
No — once heated and sealed, the connection is permanent. To service the wire later, you cut the connector off and install a fresh one. This is by design — the permanent seal is what gives you waterproof reliability. For serviceable connections, use male/female spade connectors instead.
Will the heat damage the wire insulation?
Not if you heat correctly. Standard automotive primary wire insulation (PVC) tolerates up to about 220°F continuously and brief exposure to higher temperatures without damage. The heat shrink process applies heat for only 10–20 seconds and the connector sleeve absorbs most of it. Over-heating with a heat gun held close for too long can melt insulation — keep the gun moving.
Can I crimp without heating, then heat later?
Yes — you can crimp now and heat the seal later, even days later. The electrical connection is complete after crimping. The heat shrink step is purely the environmental seal. Many installers do batch crimping during the install and then go back with the heat gun once everything is positioned.
Are these UL listed?
Connectors used in automotive 12V and marine 12/24V applications typically meet SAE or ABYC standards rather than UL listings (UL is for AC household and commercial wiring). For automotive low-voltage DC use, our heat shrink connectors meet the relevant SAE and ISO performance standards.
Bottom line
If you do any meaningful amount of automotive, marine, trailer, or low-voltage DC wiring, heat shrink connectors are the right baseline. The price-per-connection difference vs vinyl is rounding error. The reliability difference shows up the first time you don't have to re-splice a wire two years later.
For a single small project, grab a 250–300 piece kit. For a working installer or someone building out a serious electrical setup, a 600-piece all-in-one kit covers every connector type and AWG range without running back for one specific size.
