Soldering vs Heat Shrink Butt Connectors: Which Is Better?

06 July, 2026

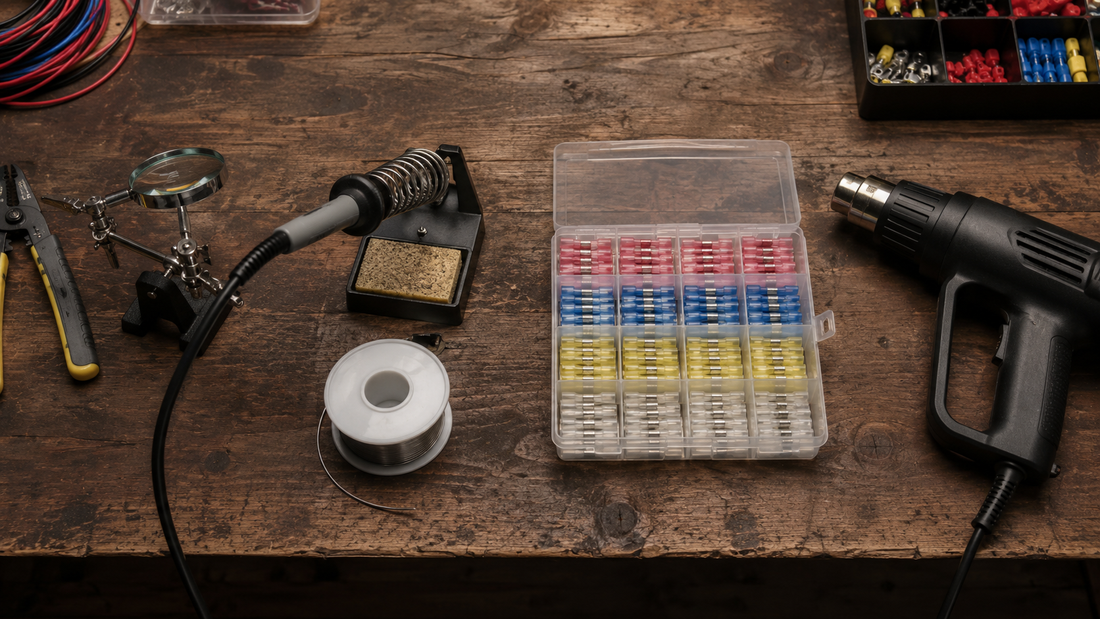

Soldering iron and heat shrink butt connector tools compared on a workbench
Workbench with a soldering iron, solder spool, heat gun, and heat shrink butt connector kits

Both methods make a permanent, electrically sound splice — but they solve different problems. Soldering gives you the lowest-resistance joint possible; heat shrink butt connectors give you speed and a built-in weatherproof seal. Picking the wrong one for the job is how a five-minute repair turns into an hour, or how a solid indoor joint fails within a season outdoors.

How each method actually joins the wire

Soldering melts a metal alloy into the twisted copper strands, creating a single fused conductor once it cools. Done correctly, this produces the lowest possible electrical resistance at the joint — there's no crimp interface at all, just continuous metal. The tradeoff is that solder alone does nothing to protect the joint from moisture; you still need heat shrink tubing or tape over the top afterward.

A heat shrink butt connector works differently: it crimps the two wire ends mechanically inside a metal barrel, then a surrounding polyolefin shell shrinks under heat and an internal adhesive lining melts and seals around the wire jacket. The electrical connection comes from the crimp; the weatherproofing is built into the same step. Nothing extra to add afterward.

Quick rule: Soldering optimizes for the best possible electrical joint. Heat shrink connectors optimize for a fast, sealed repair. Most repair jobs care more about the second.

Soldering vs. heat shrink connectors, side by side

Soldered wire joint next to a heat shrink butt connector splice
Factor Soldering Heat shrink connectors
Time per splice 5–10 minutes with setup 1–2 minutes
Tools required Soldering iron, solder, flux, heat shrink tubing for insulation Crimper, connector, heat gun
Weatherproofing Requires separate heat shrink tubing or tape over the joint Built in — sealed in the same step
Electrical resistance Lowest possible — continuous fused metal Very low, but slightly higher than a solder joint
Flexibility after repair Can become stiff and prone to cracking if the joint isn't stress-relieved Stays flexible; shell allows normal bending
Skill curve Takes practice to get a clean, shiny joint Reliable results after one or two tries
Best for Fixed, low-vibration indoor wiring; audio and signal work Automotive, marine, outdoor, and most general repairs
