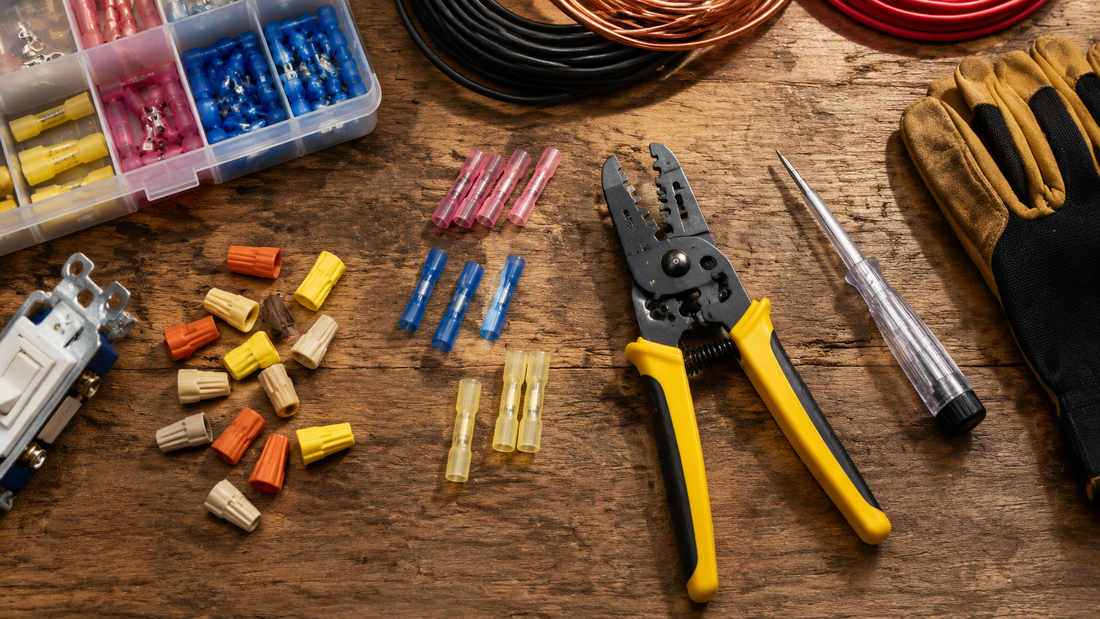

Butt connectors and wire nuts both join conductors, but they are designed for different installation environments. A good repair starts by identifying the circuit type, enclosure requirements, conductor size, moisture exposure, vibration, and the rules that apply to the equipment or building.
This guide compares the two connection methods so you can choose the correct approach instead of treating them as interchangeable.
Butt Connectors and Wire Nuts Solve Different Problems
A butt connector creates an inline splice. Each stripped conductor enters one end of a metal barrel, the barrel is crimped with the correct tool, and an insulated or heat-shrink sleeve protects the connection. This format is common in automotive, marine, trailer, equipment, and other low-voltage wiring where a compact inline joint is useful.
A wire nut joins two or more conductors by twisting or spring-clamping them together under a removable cap. Wire nuts are commonly used in accessible electrical boxes and enclosures where the connection remains serviceable. Their permitted use depends on conductor type, connector listing, enclosure, and local electrical requirements.
When Heat-Shrink Butt Connectors Are the Better Fit
- Inline repairs: the finished splice stays narrow and follows the cable path.
- Vibration: a properly crimped barrel provides a mechanically secure joint for mobile equipment.
- Moisture exposure: adhesive-lined heat-shrink styles can help seal the splice when heated correctly.
- Wire-gauge control: color-coded sizes help match the connector barrel to the conductor range.
The connection quality depends on preparation. Use clean copper, strip only the specified length, insert the conductor fully, crimp with the correct die, perform a firm pull test, and shrink the sleeve evenly without scorching it.
When Wire Nuts Are the Better Fit
Wire nuts are generally suited to accessible splices inside approved boxes or enclosures when the connector is listed for the conductor material, wire count, and gauge combination. They are convenient when several conductors must be joined at one point and future access is expected.
They are not automatically appropriate for exposed, wet, high-vibration, or tightly routed inline repairs. A cap that is correct in a dry junction box may be a poor choice under a vehicle, inside a boat compartment, or in a moving harness.
A Practical Selection Checklist
- De-energize and verify: disconnect power and confirm the circuit is safe before work.
- Identify the system: building AC, automotive DC, marine, trailer, appliance, or equipment wiring.
- Match conductor details: gauge, material, strand type, number of conductors, and insulation temperature rating.
- Check the environment: moisture, vibration, heat, chemicals, abrasion, and enclosure access.
- Use the specified tool: a correct crimper for butt connectors or the installation method required by the wire-nut manufacturer.
- Inspect the result: no exposed copper, no loose strands, and adequate strain relief.
ALBO Heat-Shrink Butt Connector Kits
Choose the connector color and barrel size that matches the wire gauge. The assortment below is intended for properly designed automotive, marine, and equipment wiring repairs—not as a universal substitute for building-wiring connectors.
Assorted red, blue, white, and yellow connectors for matching wire-size ranges.
Larger assorted kit for workshops that regularly service multiple wire gauges.
Shop Heat-Shrink Butt Connectors
Compare assorted and single-gauge packs for automotive, marine, and outdoor wiring work.
View the CollectionFrequently Asked Questions
Are heat-shrink butt connectors waterproof?
They can provide a moisture-resistant sealed splice when the connector is designed for sealing and is crimped and heated correctly. Poor crimping, damaged insulation, or incomplete shrinking can compromise the seal.
Can I use butt connectors in household wiring?
Do not assume so. Use only connectors and methods permitted for that circuit, conductor type, enclosure, and local code. For permanent building wiring, consult a qualified electrician when unsure.
Why does the crimp tool matter?
The correct die compresses the barrel within its designed range. Pliers or an incorrect die can leave a weak joint that pulls apart or develops resistance.
Electrical work can cause shock, fire, or equipment damage. Follow applicable codes and manufacturer instructions, and use a qualified professional for work beyond your training.
