Start with the complete support system
Choosing swing hangers for a wood beam is not just a matter of finding a hook with a large number in the product title. The installed system includes the hanger, connector, rope or chain, fasteners, wood beam, surrounding structure, and the way the load moves. Every part must be suitable for the intended application.
Begin by identifying what will hang from the beam: a porch swing, hammock chair, exercise strap, punching bag, or another moving item. Note the number of attachment points, the direction of movement, outdoor exposure, and who will use it. Dynamic movement can create forces that are different from the static weight of an empty seat.
Binam's swing hanger collection includes active plate-mounted and swivel styles for indoor and outdoor projects. The right choice depends on the wood structure and installation requirements, not on appearance alone.
Confirm that the beam is suitable
A hanger can be strong while the supporting wood is not. Before drilling, confirm that the member is a structural beam rather than trim, a thin fascia board, decorative blocking, or an unknown enclosed component. Check for rot, splitting, insect damage, previous holes, water damage, major knots, and repairs near the proposed mounting area.
The beam must have enough sound material for the specified fasteners and the expected load path. Its size, species, grade, span, orientation, and connection to the rest of the structure all matter. A visually large beam is not automatically adequate.
If the framing is concealed, unusually old, modified, or difficult to identify, pause the project. A qualified contractor or structural professional can determine whether the beam and its connections are appropriate. This is especially important for public, commercial, therapy, aerial-fitness, or multi-user installations.
Choose a mounting style that fits the beam
Plate-mounted hangers spread their mounting holes across a base. They require a flat bearing surface and a fastener pattern that stays within sound wood. The active ALBO diamond-plate swing hanger two-pack is listed as 304 stainless steel and includes snap hooks, screws, and anchors for wood or concrete applications.
Included hardware does not remove the need to verify the substrate. Concrete anchors are not wood fasteners, and hardware supplied for one installation condition may not suit another beam size, wood condition, or local requirement. Use only the fasteners and installation method approved for the specific product and structure.
A swivel hanger is useful when the suspended item rotates or changes direction. The active ALBO 360-degree swivel hanger two-pack includes locking carabiners and is described for wood and concrete mounting. A swivel can reduce twisting in the connected strap or rope, but it does not correct a weak beam or poor fastener placement.
Understand mounting direction and the load path
Install the hanger in the orientation specified by its instructions. The base should sit fully against the intended surface, and the attachment should load the hanger in its designed direction. Mounting a ceiling-style plate on an edge, narrow face, angled surface, or improvised bracket can change how forces reach the fasteners.
Consider the full motion of the suspended item. A porch swing generally moves along a primary arc, while a hammock chair or training attachment may rotate and pull in several directions. The hanger and its connectors need clearance through that range without contacting the beam, ceiling, trim, or another hanger.
Do not assume that a published hanger rating equals the safe working load of the finished installation. Product listings may describe laboratory or component capacity, while the installed system can be limited by the wood, fasteners, spacing, connectors, angle, wear, or dynamic loading. Follow the product instructions and any applicable building, playground, or equipment standards.
Match the number of hangers to the equipment
Use the attachment pattern required by the swing or suspended equipment. A two-point swing normally needs two properly located support points; a single-point chair or rotating accessory may use one. Do not convert between one-point and two-point mounting merely because a hanger package contains a certain quantity.
For a pair, alignment matters. The hangers should be positioned so the ropes, chains, or straps run naturally without being pulled sideways. Incorrect spacing can make the seat track poorly, load the connectors unevenly, or force the hanger to work at an unintended angle.
Measure the actual equipment and follow its mounting instructions. Leave enough clearance around the moving item for users, walls, posts, furniture, and the ground. Clearance guidance differs by product and use, so there is no universal spacing value for every swing installation.
Select compatible connectors
The hanger eye, carabiner, shackle, rope, chain, and swing attachment must fit together without crowding or side-loading. A connector should close completely and move through the expected range without levering against an edge. If a carabiner has a locking mechanism, close and secure it as instructed before use.
A connector designed for casual hanging is not automatically appropriate for people, exercise equipment, or repeated dynamic motion. Verify the intended use and rating of every component. Avoid mixing hardware simply because the pieces physically fit.
Inspect contact points for sharp edges that could abrade webbing, rope, or coated chain. Metal-on-metal connections can also wear over time. Use the interfaces recommended by the equipment manufacturer and replace parts that show deformation, cracking, severe scoring, or unreliable closure.
Plan fastener placement before drilling
Hold the hanger in its intended position and confirm that every hole will enter sound wood with adequate edge distance and spacing. Keep clear of splits, damaged areas, old holes, and hidden utilities. If you cannot verify what is behind or above the beam, do not drill until the area is assessed.
Use the pilot-hole diameter and drilling depth specified for the fastener and wood condition. A pilot hole that is too small can split the beam or make the fastener difficult to seat. One that is too large can reduce holding ability. Do not invent a pilot size from the hanger's appearance.
Drive fasteners straight and seat the plate evenly. Do not overdrive them until the plate bends or compresses deeply into the wood. If a fastener spins, fails to tighten, or enters a void, stop. Moving the hanger a small distance without evaluating the beam can leave weakened holes too close together.

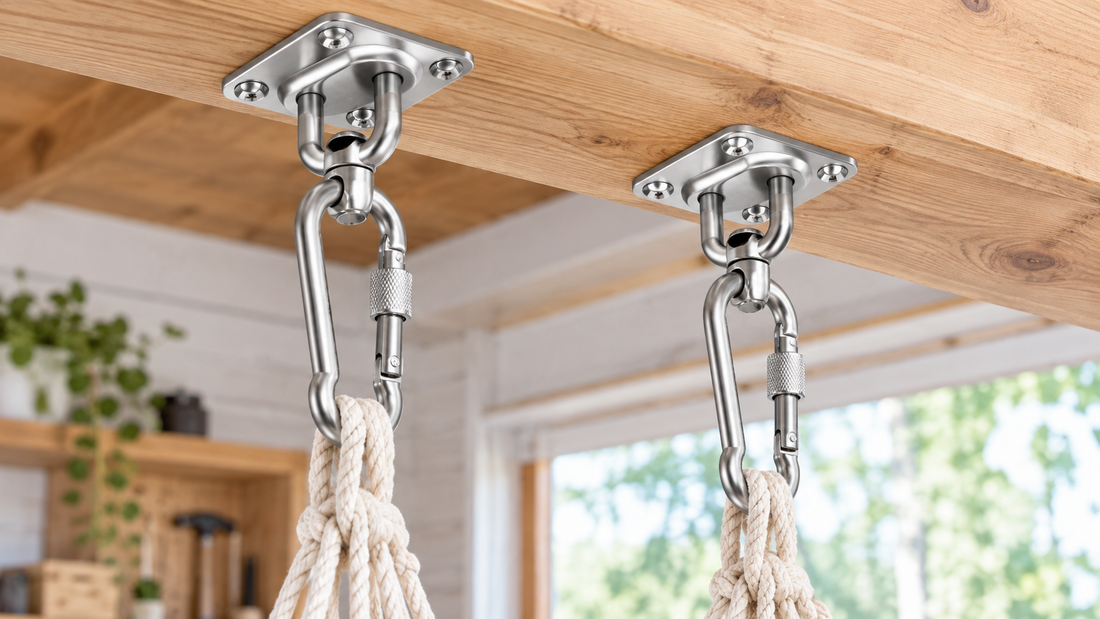

Install paired hangers consistently
- Support and mark. Position the equipment temporarily, establish the required attachment points, and mark the hanger centers.
- Check the structure. Confirm both locations are on the intended structural member and away from defects or previous holes.
- Verify orientation. Align each mounting plate with the expected direction of movement and ensure the base sits flat.
- Prepare the holes. Follow the product and fastener instructions for pilot size, depth, and tool control.
- Seat the hardware. Tighten evenly without distorting the plate, stripping the wood, or substituting unapproved parts.
- Attach the equipment. Use compatible connectors, close all locks, and make sure ropes or chains are not twisted.
- Test gradually. Apply a controlled test procedure specified by the equipment manufacturer before normal use.
Inspect before every use
A quick pre-use inspection can catch changes before they become failures. Look for loose fasteners, a plate lifting from the wood, new cracks, wood compression, rust, bent parts, damaged threads, open connectors, frayed rope, worn chain, and unusual movement or noise.
Stop using the installation if anything has shifted or loosened. Retightening is not always the correct fix: a loose fastener may indicate damaged wood, an enlarged hole, incorrect hardware, or movement in the supporting structure. Find the cause and follow the approved repair method.
Outdoor installations need particular attention after severe weather, long wet periods, freezing conditions, or seasonal storage. Stainless steel can improve corrosion resistance, but no hardware is maintenance-free. Dirt and moisture around moving joints can also hide wear.
Set a maintenance routine
Follow the inspection and replacement intervals provided by the hanger and suspended-equipment manufacturers. Usage frequency, environment, user motion, and exposure affect how often a closer check is needed. A commercial or shared installation generally requires documented inspections appropriate to its governing rules.
Keep the area below and around the swing clear during maintenance. Do not test with a person until the structure, fasteners, connectors, and equipment have passed the required checks. Replace components that are cracked, bent, heavily worn, or no longer lock securely.
Final selection checklist
- The beam is structural, sound, and suitable for the intended installation.
- The hanger style matches the mounting surface and direction of motion.
- The fasteners are approved for the product and actual wood condition.
- The number and spacing of hangers match the suspended equipment.
- Every connector closes fully and works without side-loading.
- The complete system, not just one component, is suitable for expected static and dynamic forces.
- The installation has adequate movement and user clearance.
- A repeatable inspection and maintenance plan is in place.
Choose swing hangers by working outward from the beam and the intended motion. A compatible hanger, correctly oriented hardware, sound wood, controlled installation, and regular inspection are all necessary parts of a reliable support point.
