Quick answer: there is no universal bracket spacing
Countertop support brackets should be spaced according to the strictest requirement in the complete installation: the countertop manufacturer or fabricator, the bracket instructions, the cabinet or knee-wall structure, and the fasteners used to connect everything. A spacing number that works for one quartz island may be wrong for a thinner slab, a wood top, a laminate assembly, or a bracket attached to different framing.
A practical layout begins by locating structural studs or blocking, measuring the unsupported overhang, and checking the top material and thickness. The designer then places end supports, accounts for seams and concentrated loads, and adds intermediate brackets so no span exceeds the approved limit.
Some products are designed around a specific on-center layout. For example, one active ALBO 16-inch flat bracket listing describes installation at 16-inch centers. Treat that as product-specific guidance, not permission to ignore the countertop supplier or fabricator. Browse the current support bracket collection to compare available flat and L-shaped designs before planning the layout.
What “on center” means

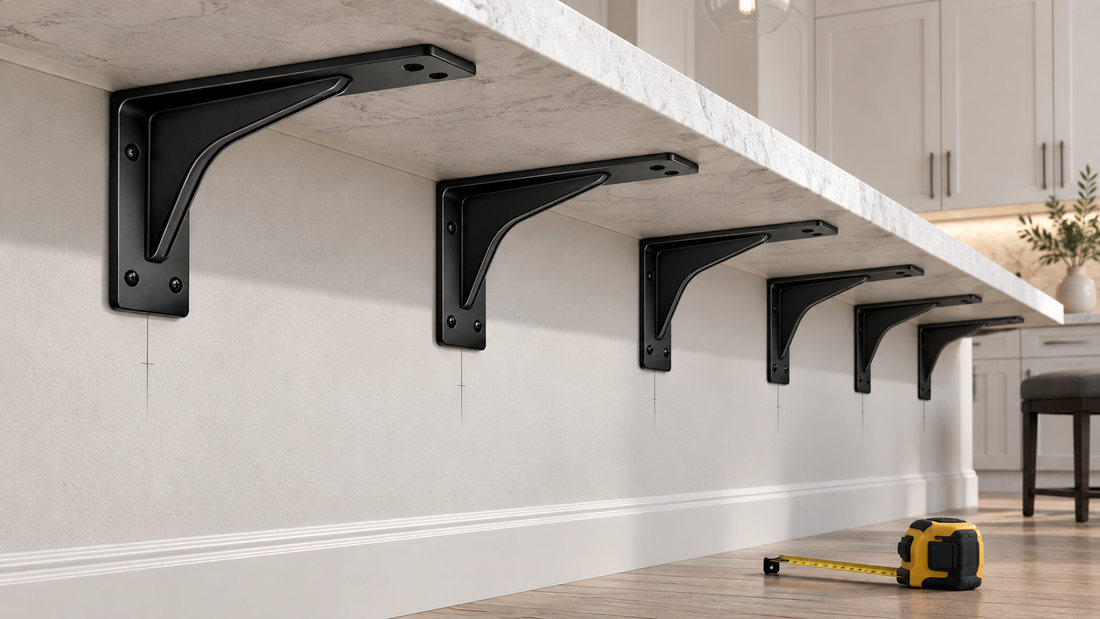

Bracket spacing is normally measured from the centerline of one bracket to the centerline of the next. This is called on-center spacing. It is different from the clear opening between the edges of two brackets. A drawing that says 16 inches on center means the bracket centerlines are 16 inches apart, regardless of bracket width.
Marking centerlines matters because it keeps the layout tied to wall studs, cabinet partitions, or added blocking. If a bracket is shifted to avoid an obstacle, the spans on both sides change. Measure the resulting gaps again instead of assuming the original spacing still applies.
Start with the countertop material and thickness
The countertop is the element spanning between supports, so its manufacturer or fabricator should define the allowed overhang and support conditions. Quartz, natural stone, solid surface, wood, and laminate-on-substrate behave differently. Thickness, reinforcement, edge construction, cutouts, seams, and substrate can change the approved span even within one material family.
Do not copy a spacing rule from another brand or material. Published guidance from quartz manufacturers can set limits on unsupported overhang and may require support to extend a specified portion of the overhang. A fabricator may impose a tighter requirement because of the actual slab, seam location, sink cutout, edge profile, or installation conditions.
If the top is already ordered, ask the fabricator for the support drawing before installing brackets. If the top is not ordered, coordinate the cabinet, bracket, and countertop plans early. This prevents a bracket from landing where a sink, outlet, drawer, appliance, or seating position needs the space.
Overhang depth changes the leverage
A deeper overhang creates more leverage at the attachment point than a shallow overhang. That affects bracket length, bracket spacing, fasteners, and the structure behind the bracket. A small increase in depth should not be treated as a cosmetic change.
The horizontal arm also needs to extend far enough under the overhang according to the countertop and bracket instructions. Choosing a heavy-looking bracket with an arm that is too short does not create the intended support. Measure from the structural support line to the finished countertop edge, then compare that dimension with the approved bracket geometry.
Bracket style affects the load path
Flat brackets and L-shaped brackets can both support an overhang, but they connect to the structure differently. A flat bracket typically sits beneath the countertop and extends back over a properly prepared cabinet, knee wall, or substrate. The mounting surface must be flat and capable of transferring load into the structure.
The active ALBO 16-inch hidden flat countertop brackets are made from 1/4-inch steel, use a flush-mount profile, and are sold as a four-piece set. Their listing uses a 16-inch-on-center example. Confirm that this layout also satisfies the countertop supplier and that each bracket can be anchored to suitable structure.
An L-shaped bracket transfers load through both a horizontal arm and a vertical leg. The active ALBO 16-inch L-shaped countertop brackets are a two-piece set designed for hidden knee-wall support. The vertical mounting area may make this style practical when the wall face offers a reliable structural connection.
Do not compare styles by a headline capacity alone. Capacity depends on the test setup, number of brackets, attachment material, fastener type, fastener embedment, bracket spacing, and load location. The installed system is only as strong as its weakest connection.
Framing determines where a bracket can actually work
A bracket needs a structural attachment point. Decorative panels, thin cabinet skins, drywall, and unsupported fillers are not equivalent to studs, solid cabinet partitions, masonry, or engineered blocking. Before setting the spacing, identify what is behind every proposed mounting point.
If existing studs do not match the required support layout, the answer is usually to add blocking or redesign the support—not to stretch the bracket spacing. Blocking should be sized and attached for the expected load and should create a flat, consistent mounting plane.
Cabinets and knee walls must also be level, square, and securely fastened. A row of strong brackets cannot correct a flexible wall or an uneven cabinet run. Verify the base before the countertop arrives so shimming and fastening decisions can be reviewed by the installer.
Place supports around ends, seams, and cutouts
Uniform spacing is only the starting grid. Ends, corners, seams, sinks, cooktops, outlets, and other cutouts can create local weak points or interfere with hardware. The countertop fabricator may require support at a seam or limit how close a bracket can be to a cutout.
First mark the overhang ends and any return corners. Then add the locations required by the slab or top drawing. Place intermediate supports only after those critical points are established. If the remaining spaces are unequal, keep every span at or below the approved maximum rather than forcing a perfectly symmetrical appearance.
At seating areas, review knee clearance after marking the support centers. A hidden bracket can preserve more open space than a decorative corbel, but the support layout still takes priority over visual symmetry.
Fasteners are part of the spacing calculation
The bracket, fasteners, and attachment structure work as one system. Use the fastener type, diameter, length, quantity, and installation method specified for the bracket and substrate. Wood framing, engineered lumber, metal framing, concrete, and masonry require different attachment decisions.
Do not assume that hardware suitable for one substrate is suitable for another. Avoid relying on drywall anchors for structural countertop support. In wood framing, confirm adequate embedment into sound structural material. In masonry, follow the anchor maker's requirements for hole diameter, depth, cleaning, edge distance, and curing when applicable.
Fastener heads should seat as intended without deforming the bracket or standing proud beneath the countertop. Tighten in a controlled sequence and recheck that the bracket remains level.
How to lay out countertop brackets step by step
- Measure the countertop. Record the total overhang length, overhang depth, top thickness, edges, corners, seams, and cutouts.
- Get the controlling requirements. Collect the countertop maker or fabricator drawing, bracket instructions, and fastener requirements.
- Find the structure. Mark studs, cabinet partitions, knee-wall framing, masonry, and any planned blocking.
- Choose the bracket geometry. Confirm that the arm length and mounting style suit the overhang and available attachment surface.
- Mark critical supports. Place supports required near ends, seams, corners, or other locations identified by the fabricator.
- Fill the remaining spans. Add intermediate brackets so center-to-center spacing stays within the strictest approved limit.
- Resolve conflicts. Adjust blocking or the design for drawers, appliances, outlets, plumbing, and seating; do not simply delete a required bracket.
- Dry-fit and inspect. Verify level, flush contact, fastener access, and clearance before the countertop is installed.
How many countertop brackets do you need?
Do not calculate quantity from countertop length alone. Begin with the required end and special-location supports, then divide the remaining run into spans that do not exceed the approved center-to-center spacing. Round up by adding support; never round down by making the last span wider than permitted.
For example, if a specific bracket and countertop plan both approve 16-inch centers, lay out the first and last required supports and add intermediate brackets so every measured centerline gap is 16 inches or less. If the fabricator requires a tighter spacing, the tighter value controls. If the bracket instructions are tighter, those instructions control.
Common spacing mistakes
- Using one internet number for every top: material, thickness, overhang, and fabrication details change the requirement.
- Measuring the open gap: most layouts specify center-to-center spacing.
- Attaching to finish material: a bracket needs verified structure or properly installed blocking.
- Ignoring the ends: an evenly spaced middle row can still leave an excessive end cantilever.
- Skipping seams and cutouts: these locations may need dedicated support or special clearance.
- Dividing a capacity claim by countertop weight: this ignores leverage, concentrated loads, fasteners, and substrate strength.
- Moving a bracket for knee room without recalculating: the adjacent unsupported spans become larger.
Final check before installation
A sound countertop bracket plan answers four questions: what spacing the countertop supplier allows, what the bracket instructions require, where structural attachment exists, and how the fasteners complete the load path. The strictest answer controls the layout.
If you are still choosing a support style, read How to Choose the Right Countertop Support Bracket for Your Overhang. For stone, quartz, unusually deep overhangs, seams, large cutouts, commercial use, or uncertain framing, have the fabricator, contractor, or qualified design professional approve the support plan before installation.
