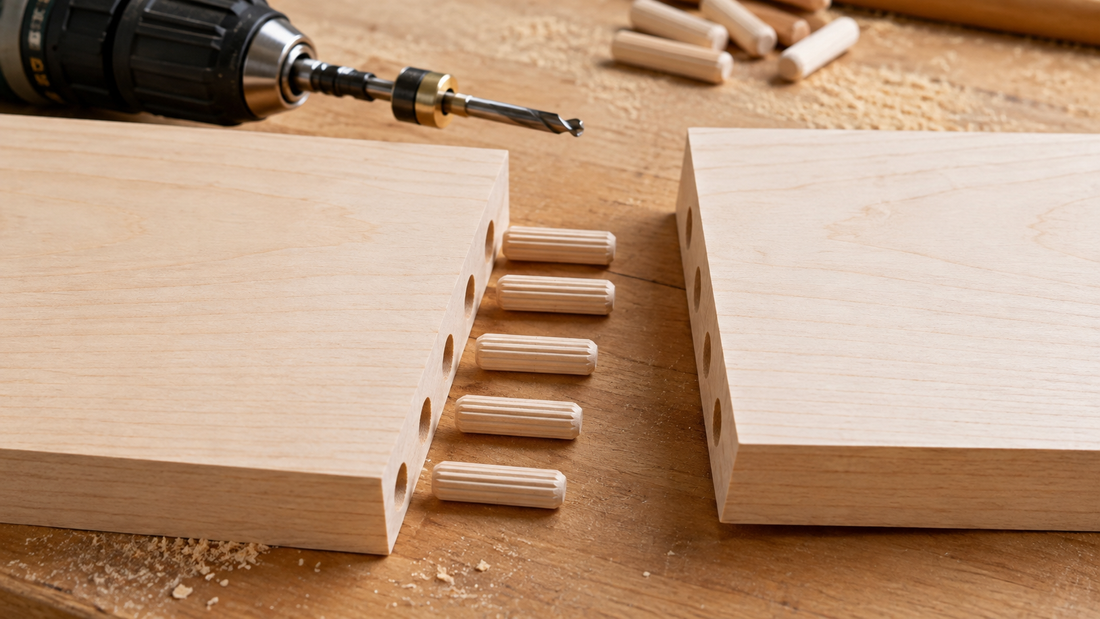

Dowel joinery depends on two holes meeting in the right place. If the holes are offset sideways, drilled at different angles, or referenced from different faces, the panels can step out of alignment even when the dowel diameter itself is correct. A repeatable reference system is therefore more important than measuring every hole independently.
Table of Contents
- Establish reference faces
- Lay out dowel spacing
- Use a jig or transfer method
- Control drilling depth
- Keep holes square
- Dry-fit before glue
- Common alignment mistakes
- Dowel pin options
- FAQ
1. Mark the Same Reference Faces on Both Pieces
Before measuring hole locations, identify the show face and reference edge of each workpiece. Mark them clearly. All jig positioning and measurements should reference those same faces. If one board is measured from its front face and the other from its back face, small thickness variations can create a visible step in the finished joint.
Arrange the boards in their final orientation and draw cabinetmaker's triangles or matching registration marks across the joint so pieces cannot be accidentally flipped.
2. Lay Out the Dowel Positions
Choose dowel diameter, length, quantity, and spacing appropriate to the material thickness and joint design. Avoid placing dowels so close to an edge that drilling or swelling could damage the workpiece. For a long edge joint, establish the first and last positions and distribute intermediate dowels consistently.
Rather than measuring the second board independently, use a jig, dowel centers, or another transfer method that references the first set of locations whenever possible. This reduces cumulative layout error.
3. Use a Doweling Jig or Reliable Transfer Method
A doweling jig helps center the drill and keep its position repeatable. Clamp the jig securely and remove chips between holes so debris does not change its seating position. If using dowel centers, drill one side first, insert the centers, bring the mating piece into its exact final alignment, and press the pieces together to transfer the hole centers.
Whichever method you use, test it on scrap of the same thickness before drilling finished components.
4. Control Hole Depth
Use a depth stop, stop collar, jig stop, or another repeatable method. The combined hole depths need to accommodate the dowel length plus suitable assembly allowance for adhesive and normal drilling variation. A dowel that bottoms out can hold the joint open even when the holes are perfectly aligned.
Do not assume every dowel should be buried exactly halfway in each part. Joint geometry may require unequal depths.
5. Keep the Drill Square to the Surface
An angled hole can start at the correct mark and still emerge off-axis deeper in the workpiece. A well-set jig is the easiest way to control this. When drilling without a jig, use visual guides or a drill guide and check alignment from two directions.
Clear chips periodically, especially in deeper holes. Packed chips can increase heat, change effective depth, and make the drill wander.
6. Dry-Fit the Joint Before Adding Glue
- Insert the dowels without adhesive.
- Bring the mating boards together gradually.
- Check that the faces are flush and the joint closes without excessive force.
- If the joint stops short, diagnose depth, alignment, debris, or fit before proceeding.
- Only after the dry fit works should you disassemble and apply the selected adhesive.
A dry fit is the cheapest point in the process to discover an alignment problem.
Common Dowel-Hole Alignment Mistakes
- Measuring both pieces separately: independent measurements can accumulate different errors.
- Changing reference faces: always register the jig from the same marked faces and edges.
- Skipping depth control: a bottomed-out dowel prevents full closure.
- Allowing the jig to move: clamp it consistently for every hole.
- Forcing a bad dry fit: excessive pressure can damage the hole or workpiece instead of fixing misalignment.
Wooden Dowel Pins for Furniture Joinery
ALBO Wooden Dowel Pins Assorted Sizes 1/4–1/2 inch 100pcs
ALBO Wooden Dowel Pins Assorted Sizes 1/4–3/8 inch Fluted 500pcs
ALBO Wooden Dowel Pins 8mm x 50mm Hardwood Fluted 200 Pack
ALBO 1/2 x 2 inch Fluted Wooden Dowel Pins 100 Pack
FAQ
How do I make dowel holes line up on two boards?
Use common reference faces and transfer the locations with a doweling jig, dowel centers, or another repeatable registration method rather than measuring both boards independently.
Should dowel holes be deeper than half the dowel?
The total hole depth must accommodate the dowel plus appropriate assembly allowance. Exact depth depends on the dowel length and joint design; use controlled stops and verify with a dry fit.
Why are my boards offset after inserting the dowels?
Typical causes include inconsistent reference faces, jig movement, angled drilling, mismatched hole centers, or workpieces that were flipped during layout.
