Fluted wood dowel pins have longitudinal grooves running along the outside of the pin. Those grooves are not decorative. During a glued dowel joint, they create channels where adhesive and trapped air can move as the pin is pressed into a close-fitting hole. That can make assembly more predictable, but flutes do not compensate for poorly sized or misaligned holes.
Table of Contents
- What is a fluted dowel pin?
- What the grooves do for glue
- Why trapped air matters
- Flutes and joint fit
- Applying glue
- Common mistakes
- Fluted dowel options
- FAQ

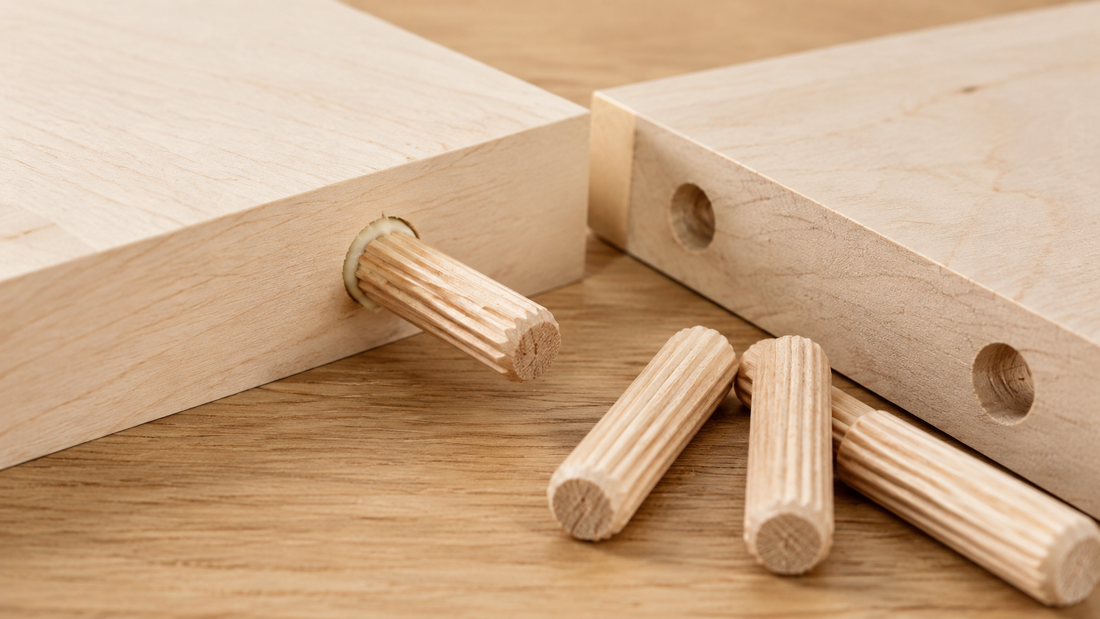

What Is a Fluted Wood Dowel Pin?
A fluted dowel is a cylindrical wood pin with grooves formed along its length. It is commonly used for furniture assembly, repairs, cabinet work, frames, panels, and other dowel joinery. The pin bridges matching holes in two workpieces and helps locate the pieces while the glued joint cures.
What Do the Grooves Do for Glue?
When a smooth cylindrical pin closely fits a glue-filled blind hole, the incoming dowel displaces both adhesive and air. Flutes provide small longitudinal channels that give the adhesive somewhere to redistribute instead of being forced entirely ahead of the pin.
This does not mean more glue is always better. Excess adhesive can still make assembly messy or difficult. Use an amount and adhesive type appropriate for the joint and follow the glue manufacturer's instructions.
Why Trapped Air and Hydraulic Pressure Matter
A blind dowel hole contains air. As the dowel enters, that air needs an escape path. With a very tight unvented fit and excess liquid adhesive, pressure can build in the bottom of the hole and resist insertion. Flutes can provide a route for air and glue to move back along the dowel.
Hole depth also matters. Do not drill both holes to exactly half the dowel length with no assembly allowance. The required depth depends on the joint design, dowel length, glue space, and drilling accuracy.
Flutes Do Not Replace Correct Hole Fit
A reliable dowel joint still depends on several fundamentals:
- The hole diameter must suit the dowel and joint system.
- The mating holes need to be aligned with each other.
- Drilling depth must provide enough room for the pin and adhesive.
- The workpieces should close fully without the dowel bottoming out prematurely.
- The joint surfaces and adhesive should be appropriate for the material and use.
If the hole is too loose, grooves cannot restore the missing fit. If it is too tight, forcing the dowel can split the workpiece or make assembly impossible.
A Practical Glue-and-Assembly Sequence
- Dry-fit the joint before adding glue.
- Confirm dowel diameter, hole depth, and alignment.
- Apply glue according to the adhesive instructions, distributing it in the hole and/or on the dowel as appropriate.
- Insert the dowel without hammering excessively.
- Bring the mating workpiece into position and verify that the joint closes fully.
- Clamp as required and allow the adhesive to cure according to its specified time.
Common Dowel-Joint Mistakes
- Assuming the grooves make any hole size work: fit remains critical.
- Overfilling blind holes with glue: excessive adhesive can resist insertion and create cleanup problems.
- Skipping the dry fit: alignment problems are much harder to correct after glue is applied.
- Driving the pin with excessive force: this can damage the dowel or split the workpiece.
- Letting the dowel bottom out: insufficient hole depth can prevent the joint from closing.
Fluted Wooden Dowel Pins
ALBO Wooden Dowel Pins Assorted Sizes 1/4–1/2 inch 100pcs
ALBO Wooden Dowel Pins Assorted Sizes 1/4–3/8 inch Fluted 500pcs
ALBO Wooden Dowel Pins Assorted Sizes 6–10mm 300pcs
ALBO Wooden Dowel Pins 3/8 x 1 1/2 inch Fluted Birch Wood 150 pcs
FAQ
Are fluted dowels stronger than smooth dowels?
The presence of flutes alone does not establish joint strength. Strength depends on the dowel dimensions, wood, hole fit and alignment, adhesive, joint geometry, and workmanship.
Should glue fill the dowel grooves?
The grooves provide paths where adhesive can redistribute during insertion. Apply glue according to the adhesive and joint instructions rather than trying to pack every groove completely.
Why will my dowel not seat all the way?
Possible causes include a hole that is too shallow or tight, poor alignment, a damaged dowel, debris, or excessive adhesive trapped in a blind hole.
