Quick answer: seat the washer evenly, then stop
A metal roofing screw should be tight enough for its sealing washer to make full, even contact with the panel, but not so tight that the washer is crushed, split, or forced far beyond the metal washer. The screw head should sit square to the panel, and the sheet should not be visibly dished by excessive pressure.
There is no single universal torque value for every exposed-fastener roof. The correct setting depends on the screw, washer, panel profile and gauge, substrate, driver, and instructions from the panel and fastener manufacturers. Use visual and tactile inspection together with the specified installation procedure.
Binam's metal roofing screw collection includes active #10 carbon-steel options in several lengths and colors. The selected 1-inch and 1-1/2-inch products use hex heads and EPDM rubber sealing washers for metal-to-wood roofing applications.
Why washer compression matters
On an exposed-fastener metal roof, each screw passes through the panel and creates a potential water-entry point. The sealing washer is intended to close that opening. It needs continuous contact around the screw without being left loose or damaged by excess compression.
Too little pressure can leave a visible gap or an uneven contact ring. Wind-driven rain can reach the hole, and panel movement can make a loose fastener work over time. Too much pressure can deform the washer, distort the panel, damage the coating near the fastener, or reduce the washer's ability to accommodate normal movement.
The goal is not “as tight as possible.” The goal is a correctly seated assembly: the screw is straight, the washer contacts the panel evenly, the fastener is secure in the intended substrate, and the panel remains in its designed shape.
How an underdriven screw looks
An underdriven screw has not brought the washer into complete, even contact. You may see daylight, a shadow line, or a gap under part of the washer. The washer may rotate easily, and the screw head may feel loose when checked according to the manufacturer's procedure.
A screw can also appear underdriven because it missed solid substrate or stripped the hole. Continuing to run the driver does not repair a missing attachment point. If the fastener will not seat securely, stop and determine whether the location, screw length, hole, or substrate is wrong.
Do not rely on roof sealant as a substitute for a properly placed and seated fastener. A loose mechanical connection remains a problem even if the surface is temporarily covered.

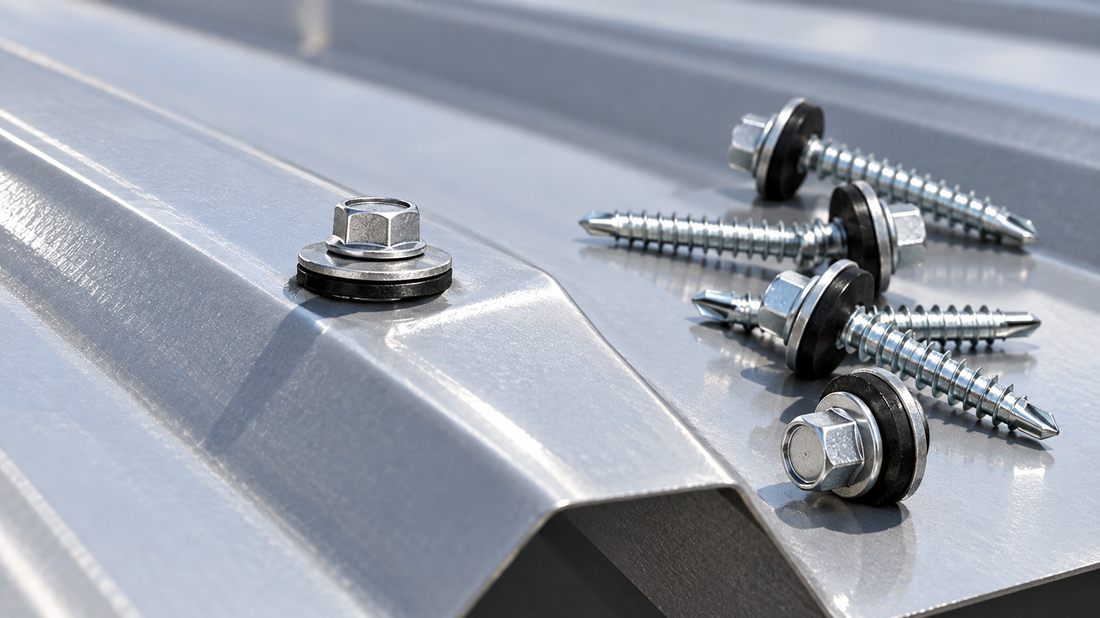

How a correctly seated washer looks
A correctly seated washer lies flat against the panel around its full circumference. The rubber is compressed enough to form the intended seal, but it is not visibly split, torn, or dramatically squeezed out. The metal washer and screw head remain centered, and the panel surface is not pulled into a pronounced crater.
View the fastener from more than one direction. A tilted screw can look acceptable from one side while leaving a gap on the opposite side. Run a hand inspection only when site rules allow it and the roof is safe to access; never use touch near sharp edges or on a hot, wet, icy, or unstable roof.
For example, the active ALBO #10 × 1-1/2-inch silver roofing screws are carbon-steel, self-tapping metal-to-wood screws supplied with EPDM washers in a 250-piece box. Use their product instructions together with the roof-panel specification rather than transferring a driver setting from a different fastener.
How an overdriven screw looks
An overdriven screw often shows excessive washer bulging beyond the metal washer, a visibly flattened or cut rubber edge, or a depression in the roof panel around the fastener. The screw may also have been driven through the panel coating with more force than required.
Overdriving is common when a high-speed driver, impact tool, worn socket, or aggressive clutch setting makes it difficult to stop at the seating point. Thin panels and uneven substrate can make the result less predictable. Drive control matters as much as tool power.
If a washer is damaged, simply backing the same screw out slightly may not restore it. Inspect the washer, screw, panel hole, and substrate. Replace damaged components and follow the panel manufacturer's approved repair method if the hole is enlarged, stripped, or misshapen.
Drive perpendicular to the panel
A sealing washer works best when pressure is distributed evenly. Hold the driver so the screw follows the intended angle—normally perpendicular to the local panel surface unless the roofing system specifies otherwise. Keep the socket fully engaged with the hex head.
Starting at an angle can make the screw wander, elongate the hole, or compress one side of the washer before the other. If the screw begins crooked, stop before it is fully seated. Remove it and evaluate the hole rather than trying to force the head straight at the end.
Screw location also matters. Some exposed-fastener panel systems specify fastening through the flat, while others have different details at laps, trim, or particular profiles. Follow the exact panel layout; do not move fasteners to a rib or flat based on a rule for another roof system.
Use a controlled driver setup
A screw gun or drill with an adjustable clutch and a correct-size, unworn hex socket gives better control than a tool that delivers full power until the trigger is released. Begin with a conservative setting, test on approved scrap or an inconspicuous area, and increase only enough to achieve consistent seating.
Keep the tool aligned and reduce speed as the washer approaches the panel. Stop when the specified seating condition is reached. Do not add extra trigger time “for security.” On a long run, recheck the first few screws and repeat the check whenever the battery, tool, socket, panel, or substrate changes.
The active ALBO #10 × 1-inch white roofing screws are self-tapping carbon-steel fasteners with hex heads and EPDM washers, sold in a 300-piece box. Their shorter length serves a different installation choice from the 1-1/2-inch model; screw length must match the panel assembly and required substrate engagement.
A repeatable installation sequence
- Confirm compatibility. Match screw type, diameter, length, coating, washer, and point to the panel system and substrate.
- Mark the fastener pattern. Follow the panel manufacturer's location and spacing instructions, including laps, edges, trim, and field fasteners.
- Check the substrate. Verify that the screw will enter sound wood or the specified structural member.
- Use the right socket. A clean, unworn driver bit should hold the hex head securely without wobble.
- Hold the driver square. Start slowly and keep the screw aligned with the local panel surface.
- Watch the washer. Slow down as it reaches the panel and stop at full, even contact with the specified compression.
- Inspect immediately. Look for gaps, tilt, excessive bulging, damaged coating, panel dimpling, or a loose attachment.
- Correct defects properly. Replace damaged fasteners or washers and use the approved repair procedure for a compromised hole.
Common causes of inconsistent screw tightness
- Driver angle changes: the washer receives uneven pressure.
- Excessive tool speed: the screw passes the seating point before the installer can stop.
- One clutch setting for every condition: battery charge, substrate density, and panel build-up can change the result.
- Worn or incorrect sockets: the head wobbles and alignment suffers.
- Uneven substrate: some fasteners seat normally while others miss solid material or pull the panel down.
- Wrong screw length or type: the fastener may not develop the required engagement.
- Reusing damaged washers: a visibly compromised seal is left at the penetration.
How to inspect an installed roof
Inspect fasteners during installation, not only after the roof is complete. Correcting a pattern early is faster than revisiting hundreds of screws. Compare several washers in the same lighting and check the roof from multiple viewing angles.
After installation, follow the roofing manufacturer's maintenance schedule. Look for backed-out screws, cracked or displaced washers, corrosion, panel movement, elongated holes, and localized staining. Pay attention after severe weather, but do not climb onto an unsafe roof. Use a qualified roofing professional when access, fall protection, or repair conditions exceed your training.
A leak near a screw does not prove that screw is the source. Water can travel from laps, flashings, penetrations, damaged panels, or a higher fastener. Trace the path carefully before replacing parts or adding sealant.
Final checklist
The washer should contact the panel evenly, the screw should be straight and secure, and neither the washer nor the sheet should show damage from excessive compression. If the fastener remains loose, the washer is crushed, the panel is dimpled, or the hole is compromised, treat the installation as a defect and use the approved repair method.
Most importantly, let the roof-panel and fastener instructions define the final seating condition. A controlled tool, perpendicular drive angle, correct screw selection, and immediate inspection are the practical safeguards against both underdriven and overdriven roofing screws.
