What this drill-powered sheet metal cutter is designed to do
A drill-powered sheet metal cutter attachment turns a compatible electric or cordless drill into a compact cutting tool for thin sheet metal. Instead of adding another powered machine to the workshop, the attachment uses the drill as its motor and places an enclosed cutting head at the workpiece.
The ALBO Drill-Powered Sheet Metal Cutter Attachment is intended for workshop fabrication, roofing repairs, and DIY jobs that require controlled straight or curved cuts. Its metal gear head and aluminum-alloy housing are designed for a compact setup, while the enclosed blade area helps keep the cutting action more contained than an exposed cutting wheel.
This does not make every drill-and-sheet combination suitable. Before starting, confirm the drill chuck can hold the attachment securely, the drill can provide adequate torque, and the sheet falls within the product's stated material range.
Check the material before choosing the tool
The current product listing gives approximate capacity ranges for several materials:
- Iron sheet: approximately 0.3–1.0 mm
- Steel sheet: approximately 0.8–1.0 mm
- Tin or white sheet: approximately 0.3–1.2 mm
- Copper: up to approximately 1.5 mm
- Aluminum: up to approximately 1.5 mm
These are product-specific guidance values, not a reason to force a cut. Alloy, hardness, coatings, corrugation, drill output, and workpiece support can change how the material behaves. If the attachment stalls, chatters heavily, deforms the sheet, or requires excessive pressure, stop and reassess instead of increasing force.
Prepare the work area and the sheet
Wear eye protection and suitable work gloves, and follow the drill manufacturer's instructions. Sheet-metal edges and freshly cut offcuts can be sharp. Keep loose clothing, hair, cords, and hands away from the cutting head.
Support the sheet on a stable work surface and clamp it so the planned cut is accessible. Arrange the supports so the offcut can separate without pinching the cutter or falling unexpectedly. Mark the cut line clearly, then inspect both sides for screws, wires, sealant, or hidden obstructions before bringing the tool to the material.
If the workpiece is part of a roof, enclosure, vehicle, or installed assembly, confirm that cutting will not damage anything behind it. The attachment is compact, but the drill body and your hands still need clearance throughout the full path.

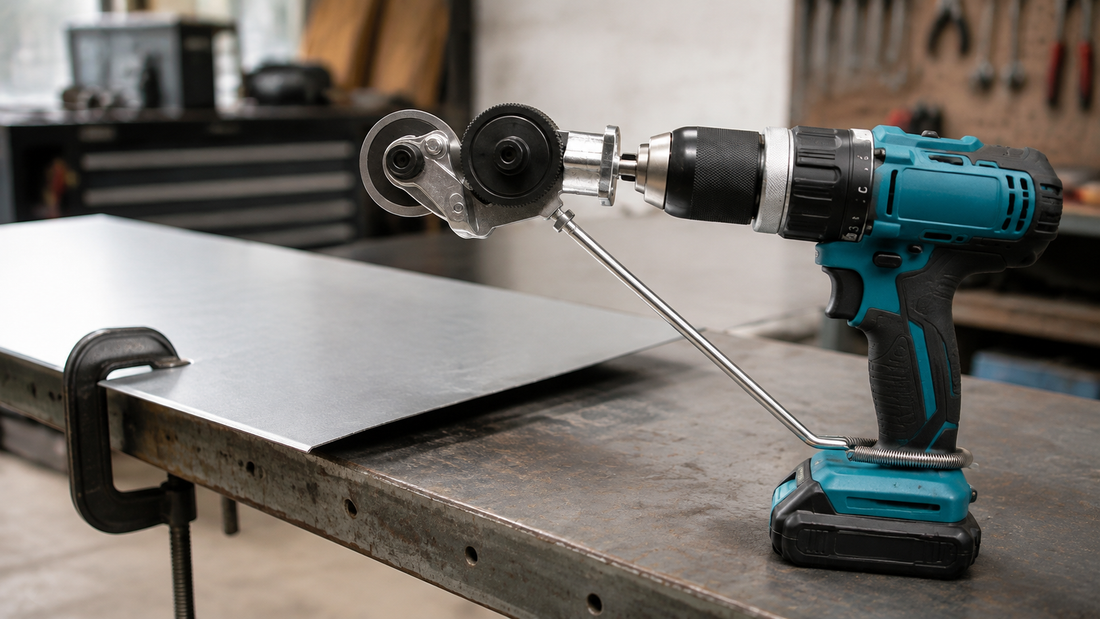

Install the attachment in the drill
- Remove the drill battery or disconnect power before setup.
- Open the chuck enough to accept the attachment's drive shaft.
- Insert the shaft straight and seat it to the appropriate depth without trapping the cutting head against the chuck.
- Tighten the chuck evenly and firmly according to the drill instructions.
- Check that the attachment is aligned, secure, and free to operate without contacting the drill body.
- Reconnect power only after the workpiece is clamped and the cutting path is clear.
The listing recommends a higher-torque 21V drill and notes that a 12V drill may provide lower cutting power. Voltage alone does not define actual torque or compatibility, so use the drill manufacturer's specifications and avoid assuming that every drill with the same voltage will perform identically.
Start the cut with control
Hold the drill and attachment so the cutting head meets the sheet squarely. Bring the tool up to a stable operating speed before feeding it into the material, unless the drill or attachment instructions specify another method. Use steady forward pressure and let the cutter work; pushing hard can distort the sheet, overload the drill, or pull the cut away from the marked line.
Watch the work immediately ahead of the cutter rather than the offcut. Keep the drill body from twisting as resistance changes. If the sheet begins to vibrate, improve its support or move the clamps before continuing. Never reach toward a moving offcut to stop vibration.
For a long cut, pause when needed to change your stance or reposition the work. Release the trigger and wait for all movement to stop before adjusting clamps or touching the sheet.
Make straighter cuts
A visible guide line and stable support matter more than speed. Begin with a short practice cut in scrap material of the same type and thickness. This shows how quickly the cutter advances and how much clearance the drill needs.
Keep your shoulders and wrists aligned with the direction of travel, and avoid steering by sharply twisting the drill. Small corrections are easier to control. On coated or finished sheet, protect the surrounding surface from the drill body, metal chips, and moving offcuts.
If the job requires a highly precise finished edge, leave a small allowance for final fitting when practical. The best cutting method depends on the required tolerance, edge finish, and material—not simply on whether the attachment can pass through the sheet.
Approach curved cuts gradually
The compact head can be useful for curves, but the minimum practical radius depends on the material and setup. Start with a broad curve and guide the cutter through a smooth arc. Trying to pivot sharply in one spot can pinch the head, buckle thin sheet, or create a jagged edge.
For an internal cutout, use an appropriate starting opening and make sure it is large enough for the cutting head without forcing it. Do not improvise a plunge cut unless the product instructions specifically allow it. Plan the direction of the offcut so it does not block the drill as the curve closes.
Common mistakes that reduce cut quality
- Using unsupported sheet. Vibration makes the line harder to follow and can leave a rougher edge.
- Forcing material beyond the stated range. Excessive thickness or hardness can stall the tool or overload the drill.
- Holding the attachment at an angle. Poor alignment increases binding and pulls the cut away from the guide.
- Feeding too quickly. The drill may slow while the sheet bends ahead of the cutter.
- Making sharp turns. A gradual radius is easier on the workpiece and cutting head.
- Ignoring the offcut. A loose strip can swing, pinch, or expose a sharp edge.
- Adjusting the work while the tool is moving. Stop the drill completely before repositioning anything.
Inspect the result and finish the edge
After the cut, disconnect the drill or remove its battery before inspecting the attachment. Let the cutting head cool if it has become warm. Brush away chips with an appropriate tool rather than bare hands.
Examine the cut edge for burrs, sharp corners, distortion, and coating damage. Deburr and finish it with a method suitable for the material and final use. Clean the work area thoroughly, especially when metal fragments could reach tires, electrical equipment, children, or pets.
Inspect the attachment before storage. If the head is loose, damaged, heavily worn, or no longer cuts smoothly, stop using it until the issue is corrected according to the product instructions.
Choosing the pack size
The product is available in 1 Pack, 2 Pack, and 3 Pack variants. A single attachment suits an individual workshop or occasional project. Multiple packs can make sense when separate crews, workstations, or toolboxes need their own attachment, or when a business wants a ready replacement without transferring equipment between locations.
Browse the full Drill Attachments collection to compare related workshop accessories, or view other selected items in Top Products.
Pre-cut checklist
- The material type and thickness are within the product-specific guidance.
- The drill chuck and available torque are suitable for the attachment.
- The attachment is seated straight and tightened securely.
- The sheet is clamped and supported on both sides of the cut.
- The cut path is marked and clear of hidden components.
- Eye and hand protection are in place.
- The offcut has room to move without pinching the cutter.
- You have tested the setup on comparable scrap when precision matters.
A drill-powered cutter is most effective when the tool, drill, material, and support setup are treated as one system. Confirm compatibility, start with a controlled feed, and stop when the tool's behavior indicates that the material or setup needs to change.
