Not every electrical connection should be permanent. When a relay, switch, speaker, pump, light, or accessory may need to be removed for testing or replacement, a correctly installed male-and-female spade connection can make service much easier.
The key is choosing a disconnect terminal for the right reason—not simply because it is faster to unplug.
Table of contents
- How spade disconnects work
- When a disconnect is better
- When a permanent splice is better
- How to select and install
- ALBO connector options
- FAQ

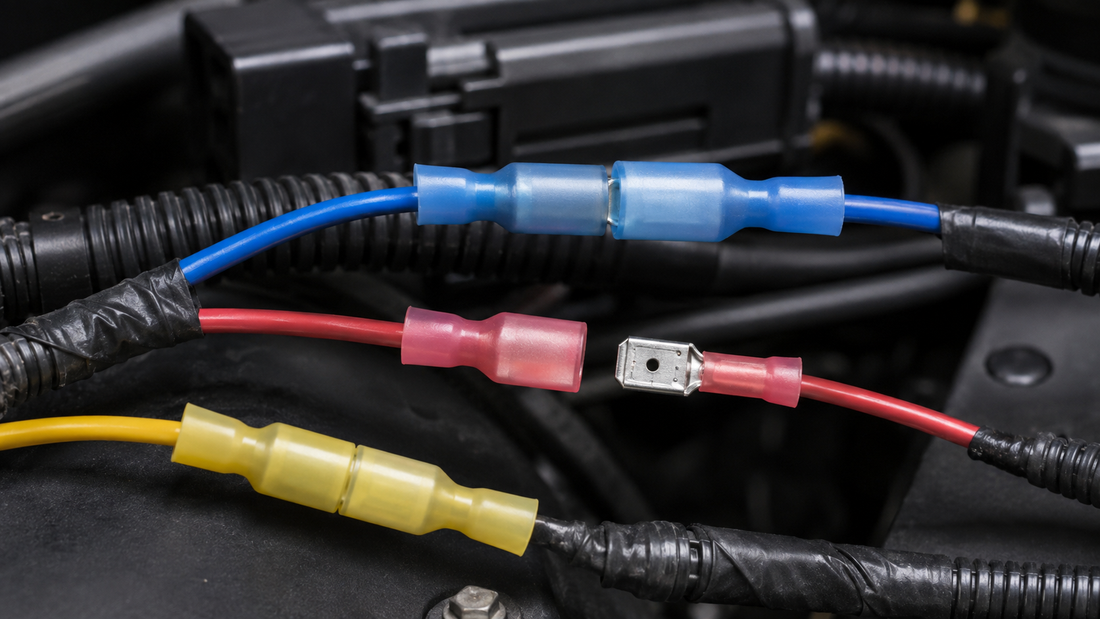

How male and female spade connectors work
A male blade terminal slides into a matching female receptacle. The pair creates an electrical path while allowing the connection to be separated without cutting the conductor. Fully insulated heat-shrink versions also protect the crimp area and can improve environmental sealing when installed correctly.
When a disconnect terminal is the better choice
Components expected to be serviced
Relays, switches, speakers, fans, pumps, lights, and removable accessories may need troubleshooting or replacement. A disconnect allows that component to be separated from the harness without sacrificing wire length.
Modular automotive and equipment wiring
Accessories are often mounted separately from the main harness. A matched disconnect pair can make assembly and replacement more practical while preserving a clean wiring layout.
Bench-tested or removable components
If a component must occasionally be removed for testing, storage, or seasonal use, a serviceable connector can prevent repeated cutting and re-splicing.
When a permanent inline splice is preferable
A butt connector is usually a better choice when two conductors are intended to remain joined as a continuous wire run. Permanent splices reduce the number of separable interfaces and can create a compact sealed connection inside a harness.
Do not add a disconnect where movement, current requirements, connector retention, or system design call for another connection method. Always follow the equipment or vehicle manufacturer's electrical specifications.
Spade connector vs butt splice
| Factor | Male/female spade | Permanent butt splice |
|---|---|---|
| Can be disconnected | Yes | No, normally cut out for removal |
| Best use | Serviceable component connection | Permanent inline wire repair |
| Requires matched halves | Yes | No |
| Wire-gauge matching | Required | Required |
| Crimp quality | Critical | Critical |
How to select the right spade connector
1. Match the conductor AWG
The stripped conductor needs to fit the crimp barrel specified by the terminal manufacturer. Do not force an oversized conductor into a small barrel or fold a small conductor to make it fill an oversized connector.
2. Match male and female geometry
The two halves must be designed to mate correctly. A loose connection can create intermittent electrical contact and heat.
3. Use the proper crimp tool
Use a crimper designed for insulated heat-shrink terminals. The goal is a controlled mechanical compression of the conductor without cutting the barrel or insulation.
4. Perform a pull test
After crimping, apply a firm manual pull appropriate for the wire size. The conductor should not slide out of the terminal.
5. Heat the insulation evenly
When using heat-shrink terminals, apply controlled heat around the sleeve until it conforms to the wire insulation. Avoid overheating or scorching the sleeve.
6. Support the harness
A terminal should not carry the mechanical weight of a loose harness. Provide appropriate strain relief and routing so vibration is not concentrated at the crimp.
ALBO male and female spade connectors
ALBO Male & Female Spade Connectors 22–16 AWG — Red
ALBO Male & Female Spade Connectors 16–14 AWG — Blue
ALBO Male & Female Spade Connectors 12–10 AWG — Yellow
ALBO Male & Female Spade Connector Kit 22–10 AWG — 300 pcs
Explore electrical terminals and connector kits
Find heat-shrink terminals for automotive, marine, equipment, and DIY low-voltage wiring projects.
Shop ElectricalFAQ
Can male and female spade connectors be reused?
The mating connection can be disconnected and reconnected, but each terminal remains permanently crimped to its conductor. Inspect retention and insulation before reconnecting.
Are heat-shrink spade connectors waterproof?
Heat-shrink insulation can improve moisture protection when installed correctly, but suitability still depends on the specific product, environment, and complete connection design.
Can I use pliers instead of a crimping tool?
A purpose-built crimping tool is the appropriate method. Ordinary pliers do not create the controlled crimp geometry required for a dependable termination.
Should I use spade connectors for household mains wiring?
Only use connection methods and components specifically approved for that electrical system and local code. These terminals are commonly used in automotive, marine, equipment, and other low-voltage applications.
Safety: Disconnect power before wiring. Confirm conductor size, terminal rating, current requirements, environmental suitability, and circuit protection before installation.
