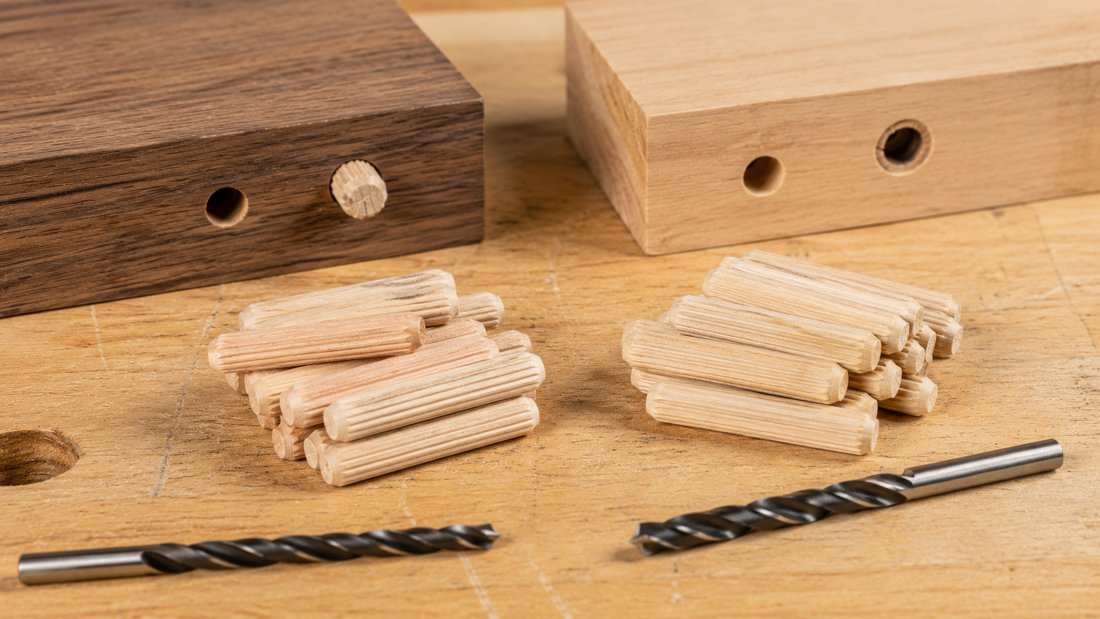

A 6 mm dowel and a 1/4-inch dowel look almost identical. So do 8 mm and 5/16 inch. But in dowel joinery, a few tenths of a millimeter can be the difference between a snug glue joint, a loose fit, and a dowel that will not enter the hole without excessive force.
Metric and inch sizes should be treated as separate standards unless you have measured the actual dowel and verified the fit with the drill bit and workpiece.
Table of Contents
- Exact size conversions
- 6mm vs 1/4 inch
- 8mm vs 5/16 inch
- Why fit depends on more than nominal size
- Metric and inch dowel options
- FAQ
Exact Metric-to-Inch Comparison
| Nominal Size | Converted Diameter | Difference |
|---|---|---|
| 1/4 in | 6.35 mm | 0.35 mm larger than 6 mm |
| 5/16 in | 7.9375 mm | 0.0625 mm smaller than 8 mm |
| 3/8 in | 9.525 mm | Not equivalent to 10 mm |
| 1/2 in | 12.7 mm | Not equivalent to 12 mm |
Can a 6mm Dowel Replace a 1/4-Inch Dowel?
Not as a direct one-for-one substitution. One quarter inch equals 6.35 mm, so a nominal 6 mm dowel is 0.35 mm smaller. In a true 1/4-inch hole, that difference can create noticeable looseness.
If you are using 6 mm dowels, start with a 6 mm drilling system and test the actual dowel-to-hole fit. Do not assume extra glue will compensate for an undersized dowel.
Can an 8mm Dowel Replace a 5/16-Inch Dowel?
This pair is much closer. Five-sixteenths of an inch equals 7.9375 mm, making a nominal 8 mm dowel only 0.0625 mm larger. Even so, that difference can matter because real dowels and drill bits have tolerances, wood fibers compress, and moisture can change dowel diameter.
An 8 mm dowel may fit a nominal 5/16-inch hole in some combinations and bind in others. Measure and test rather than declaring the sizes universally interchangeable.
Why Nominal Diameter Is Only Part of the Fit
- Dowel tolerance: manufactured dowels are not all exactly nominal diameter.
- Flutes: ridges and grooves affect compression and glue movement.
- Drill-bit tolerance: actual cutting diameter can differ slightly from the marked size.
- Wood moisture: dowels can swell or shrink with humidity.
- Hole quality: tear-out, wandering, or an angled hole can change the effective fit.
For repeatable joinery, pair the dowel standard with the matching bit size, drill a sample in scrap, and check that the dowel seats with firm hand pressure without splitting the workpiece.
Metric and Inch Wood Dowel Options
6x30mm Fluted Wood Dowel Pins, 200pcs
A true metric 6 mm option for projects designed around 6 mm joinery.
View Product
8x50mm Hardwood Fluted Dowel Pins, 200 Pack
A metric 8 mm dowel for furniture and woodworking joints made with an 8 mm bore.
View Product
Assorted 1/4–1/2 in Wood Dowel Pins, 100pcs
An inch-standard assortment for repairs and projects using fractional-inch sizes.
View Product
3/8 x 1-1/2 in Fluted Birch Dowel Pins, 150pcs
A dedicated 3/8-inch option when the joint is specified in fractional-inch dimensions.
View ProductBest Practice for Mixed Metric and Inch Projects
- Identify the original hole standard if possible.
- Measure the actual dowel diameter with calipers.
- Use the matching metric or fractional-inch drill bit.
- Test the fit in scrap before drilling the finished workpiece.
- Avoid forcing a slightly oversized dowel or relying on glue to compensate for an undersized one.
FAQ
Is 6mm the same as 1/4 inch?
No. One quarter inch is 6.35 mm, so 6 mm is 0.35 mm smaller.
Is 8mm the same as 5/16 inch?
They are very close but not identical. Five-sixteenths inch is 7.9375 mm, so 8 mm is 0.0625 mm larger.
Can wood compression make close sizes interchangeable?
Sometimes the materials can accommodate a small difference, but tolerances vary. Test the exact dowel and hole.
What drill bit should I use for a 6mm dowel?
Start with a 6 mm bit and test the actual dowel fit in scrap material.
Should a dowel be loose enough to fall into the hole?
Typically no. A dowel joint should have a controlled fit that allows assembly and glue distribution without destructive force.
Shop Metric and Inch Wood Dowel Pins
Choose the standard that matches your drill setup and joint dimensions instead of relying on approximate conversions.
