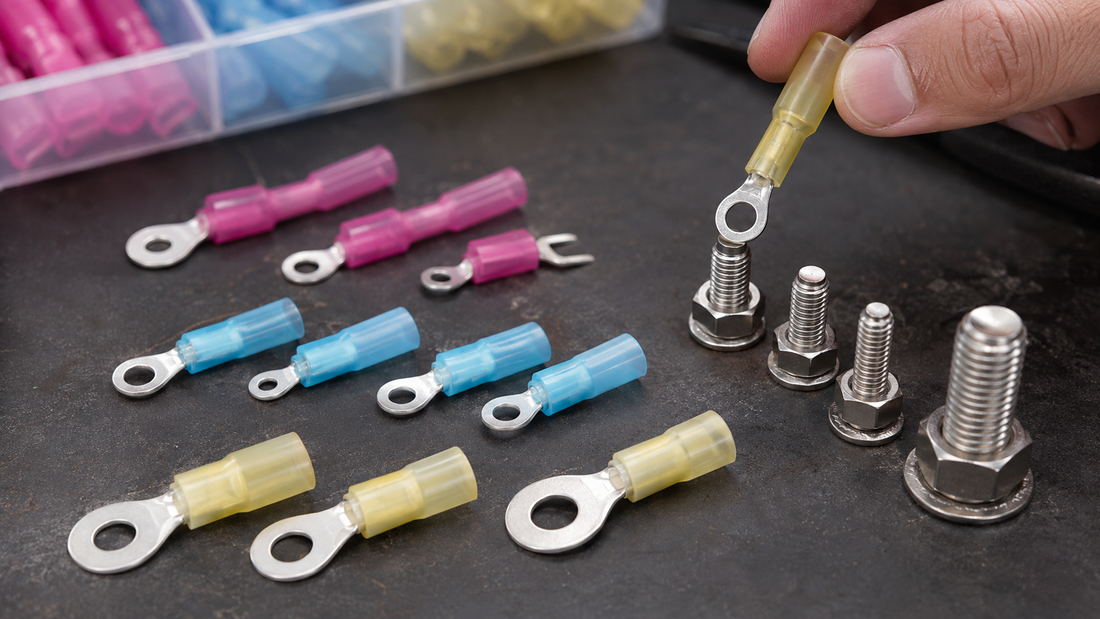

Choosing a ring terminal requires matching two different dimensions: the terminal barrel must fit the wire gauge, and the ring opening must fit the stud or bolt. A terminal can be correct for 12–10 AWG wire and still be wrong for the hardware it needs to mount on.
This guide separates those two sizing decisions and explains the common stud-size labels you will see in electrical terminal assortments.
Table of Contents
- Wire gauge vs stud size
- Common ring terminal stud sizes
- How tight should the ring fit?
- Installation checks
- Ring terminal kits
- FAQ
Wire Gauge and Stud Size Are Separate
The color or AWG marking on an insulated terminal normally identifies the conductor range the barrel is designed to accept. The stud-size marking identifies the hole in the ring tongue. These dimensions do not replace one another.
For example, a 12–10 AWG ring terminal can be offered with several different ring openings. Select the wire range first, then select the opening that fits the actual screw, stud, or bolt.
Common Ring Terminal Stud Sizes
| Stud label | What it means | Selection check |
|---|---|---|
| #8 | A machine-screw size designation used on smaller electrical mounting points. | Confirm the actual equipment stud or screw size before crimping. |
| #10 | A common screw-size designation on terminal blocks and accessory connections. | The ring should slide over the hardware without forcing or excessive slop. |
| 1/4" | Fractional-inch stud size. | Match to the stud diameter and ensure the washer/nut seats on the tongue. |
| 5/16" | Larger fractional-inch mounting size. | Verify clearance around adjacent terminals and hardware. |
| 3/8" | Common on larger power and grounding connections. | Check both mechanical fit and the terminal's electrical rating. |
| 1/2" | A large stud opening used where substantial mounting hardware is present. | Do not use a large opening on a much smaller stud simply because it fits over it. |
How Tight Should a Ring Terminal Fit the Stud?
The opening should be large enough to install without deformation, but not so oversized that the terminal can shift excessively under the washer or nut. Excess clearance can reduce mechanical stability and can make consistent seating more difficult.
Also check the outside diameter and shape of the ring tongue. A hole may fit the stud while the tongue itself interferes with a nearby wall, terminal, or insulating barrier.
Installation Checks That Matter
- Match the conductor range: use a barrel specified for the wire gauge.
- Match the mounting hardware: select the correct ring opening for the stud or screw.
- Use the correct crimp die: crimp the metal barrel rather than crushing only the insulation.
- Perform a pull check: the conductor should remain secure after crimping.
- Shrink evenly: for heat-shrink terminals, apply controlled heat until the tubing conforms and any adhesive seal develops as intended.
- Follow equipment torque specifications: terminal hardware should be tightened to the equipment manufacturer's requirement, not a guessed universal value.
For multi-terminal stacks, verify that the equipment permits stacking and that the nut, washer, and stud provide adequate thread engagement. Electrical contact surfaces should be clean and compatible with the application environment.
Ring Terminal Kits for Different Wire and Stud Sizes
ALBO Heat Shrink Ring Terminal Kit 22–10 AWG 500pcs
A broad assortment for multiple wire gauges and common ring-terminal mounting sizes.
View Product
ALBO Red Heat Shrink Ring Terminal Kit 22–16 AWG 250pcs
For smaller conductors with an assortment of stud openings.
View Product
ALBO Blue Heat Shrink Ring Terminal Kit 16–14 AWG 250pcs
A dedicated mid-range wire-gauge assortment with multiple ring sizes.
View Product
ALBO Yellow Heat Shrink Ring Terminal Kit 12–10 AWG 250pcs
For larger conductors where the wire barrel and stud opening both need to be matched correctly.
View ProductMatch Both the Wire and the Stud
Choose the conductor range first, then select a ring opening that fits the actual mounting hardware.
Shop Ring TerminalsFAQ
Does ring terminal color tell me the stud size?
No. Color normally identifies a wire-gauge range. Stud size is a separate specification.
Can I use a 3/8-inch ring on a 1/4-inch stud?
An oversized ring may physically fit over the stud, but that does not make it the preferred match. Use an opening sized for the mounting hardware whenever possible.
Are #8 and #10 the same as fractional-inch stud sizes?
No. #8 and #10 are screw-size designations; 1/4, 5/16, 3/8, and 1/2 inch are fractional-inch sizes.
What matters more, wire gauge or stud size?
Both. The barrel must correctly grip the conductor and the ring must correctly fit the hardware.
How tight should I make the terminal nut?
Use the torque specified by the equipment or hardware manufacturer. There is no universal torque value for every ring-terminal connection.
Safety note: De-energize circuits before installation, verify conductor and terminal ratings, and follow equipment-specific wiring and torque requirements.
