Zip Tie Tensile Strength vs Working Load: What 50 lb, 120 lb, and 200 lb Ratings Mean

Quick answer: tensile strength is not the same as working load

A zip tie's tensile-strength rating describes the pulling force the tie is designed to withstand in a defined test configuration. It is useful for comparing products, but it is not a universal safe working load for every installation.

Real applications add variables that a simple rating cannot capture: temperature, sunlight, chemicals, vibration, sharp edges, bundle shape, installation tension, aging, and sudden impacts. For that reason, a 50 lb, 120 lb, or 200 lb label should be treated as a product-selection value, not as permission to suspend that amount of weight.

If a failure could injure someone, damage equipment, release a moving part, or create an electrical or traffic hazard, use a purpose-built, code-compliant support system. Standard nylon zip ties are not lifting slings, fall-protection equipment, structural fasteners, or substitutes for rated clamps and hangers.

What does a zip tie tensile rating mean?

Tensile strength is a force measurement. In a typical loop-tensile test, the tie is locked around a fixture and the loop is pulled apart at a controlled rate until the strap or locking system fails. The reported value helps compare ties made in different widths and constructions.

The test is repeatable, but your project may not reproduce its conditions. A tie around a smooth, round bundle is loaded differently from one pulled across a metal corner. A steady indoor cable bundle is different from an outdoor sign that shakes in the wind. Even when the numerical force is the same, the stress concentration and failure mode can change.

Always use the rating stated for the exact product. Do not transfer a rating from a tie that merely has the same length or color. Width, material, locking geometry, manufacturing, and conditioning all matter.

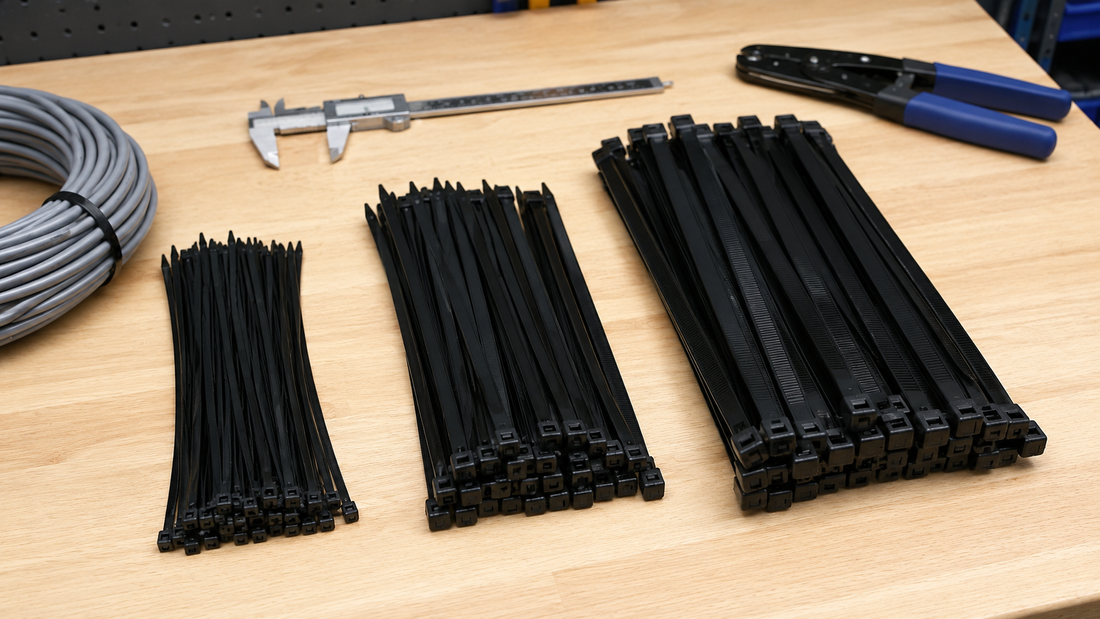

How 50 lb, 120 lb, and 200 lb ties differ

The current ALBO zip-tie range includes products labeled at 50 lb, 120 lb, and 200 lb tensile strength. The higher rating generally comes with a wider, heavier tie, but the rating alone does not tell you the usable length, maximum bundle diameter, pack size, environmental suitability, or required installation tension.

• 50 lb ties: suited to many routine cable-management, home, garden, and workshop bundling jobs when the environment and bundle size match the product. The ALBO 10-inch black zip tie is one active catalog example with a 50 lb tensile rating.
• 120 lb ties: a heavier-duty option for larger bundles and applications that need more tensile capacity. The active ALBO 16-inch model is labeled 120 lb and has a wider strap than the 50 lb example.
• 200 lb ties: extra-heavy ties for demanding non-lifting bundling and fastening tasks. The ALBO 24-inch black zip tie is labeled 200 lb and is intended for substantially larger bundles than a typical standard-width tie.

Those categories are not interchangeable with a calculated working-load limit. Select by all relevant specifications, then determine whether a nylon cable tie is the correct type of fastener at all.

Why there is no universal working-load conversion

A working load is the load an installed system is allowed to carry in its actual service conditions. Establishing it normally requires an application-specific safety factor or an engineering rule that accounts for uncertainty, wear, environment, and the consequences of failure.

There is no single percentage of tensile strength that is appropriate for every zip-tie application. Dividing the printed rating by two, four, or another arbitrary number does not automatically create a safe limit. A conservative design for a static indoor wire bundle may be unsuitable for vibration, outdoor exposure, repeated temperature cycles, or a critical installation.

When a project has a documented standard, drawing, equipment-manufacturer instruction, or engineering specification, follow it. When it does not, avoid using ordinary cable ties as load-bearing hardware and choose a rated clamp, strap, bracket, or hanger instead.

Seven factors that reduce real-world capacity

1. Temperature: heat can soften nylon, while cold can reduce impact resistance. Use the exact product's documented temperature range rather than assuming all nylon ties perform alike.
2. UV and weather: sunlight, moisture cycles, and long outdoor exposure can age the material. Black color alone does not prove a particular UV rating.
3. Chemicals: oils, fuels, cleaners, salts, and solvents can affect materials differently. Confirm compatibility when exposure is possible.
4. Sharp edges: a metal corner can concentrate force into a small section of the strap and start a cut well below the force expected in a smooth test loop.
5. Vibration and shock: repeated movement, impacts, and wind loading produce dynamic forces that are not represented by a steady bundle.
6. Installation tension: overtightening can damage the tie or crush the bundled item. An under-tightened tie can allow movement and abrasion.
7. Age and inspection history: a tie that has been heated, exposed, reused, or visibly damaged should not be treated as equivalent to a new one.

For a closer look at installation tension, read How Tight Should a Zip Tie Be?.

Bundle geometry changes the load

A zip tie works best when its loop bears evenly against a compatible bundle. Irregular objects, large gaps, twisted straps, stacked locking heads, and edges can create local stress. The locking head should sit naturally without being forced sideways, and the strap should lie flat rather than folding over itself.

Length is not strength. A longer tie may reach around a larger bundle, but that does not guarantee a higher tensile rating. Likewise, joining multiple ties end to end increases reach but does not create a certified higher-capacity fastener. If the bundle is too large for one appropriately rated tie, use a product or support method designed for that diameter.

Static load, shock load, and vibration

A static bundle applies relatively steady force. A shock load occurs when the restrained item drops, snaps, swings, or is suddenly pulled. The brief peak force can be much higher than the item's resting weight. Vibration can also flex the same spot thousands of times and gradually wear the strap or the material beneath it.

Do not use a tensile rating to justify suspending an object where it can fall. For overhead routing, moving equipment, vehicles, machinery, or public areas, use the approved support method and required secondary retention.

How to choose a zip tie for a real job

1. Define the purpose. Is the tie only organizing wires, or is it restraining a component? If it is carrying weight or preventing hazardous movement, choose rated hardware for that duty.
2. Measure the bundle. Confirm the usable tie length and listed maximum bundle diameter. Leave enough tail to engage and tension the locking head correctly.
3. Check the exact tensile rating. Compare 50 lb, 120 lb, and 200 lb products only after confirming the length, width, material, and pack you need.
4. Check the environment. Review temperature, UV, chemical, moisture, and fire-performance requirements for the exact installation.
5. Plan the contact surface. Protect the strap from sharp edges, burrs, and points that can cut or abrade it.
6. Install consistently. Use controlled tension. For repeated professional work, a compatible tensioning and cutoff tool can improve consistency.
7. Inspect after installation. Look for whitening, cracks, cuts, loose heads, crushed insulation, movement, and exposure to heat or chemicals.

Common selection mistakes

• Reading “50 lb” as a safe hanging-weight limit.
• Choosing by length while ignoring width and tensile rating.
• Assuming every black tie has the same UV and temperature performance.
• Using several ties as an improvised replacement for a rated clamp.
• Pulling the tie as tight as possible instead of as tight as the bundle requires.
• Routing across sharp metal without edge protection.
• Leaving a critical installation uninspected after heat, weather, or vibration exposure.

Final selection checklist

• The task is appropriate for a nylon cable tie and is not a lifting or safety-critical support.
• The exact product's length, width, tensile rating, material, and environmental guidance match the job.
• The bundle is smooth, stable, and within the listed diameter range.
• Dynamic loads, vibration, and consequences of failure have been considered.
• The tie can be installed without crushing the bundle or contacting sharp edges.
• A routine inspection and replacement plan exists where aging or movement is expected.

Use the tensile rating to compare products, then make the final decision from the complete application. Browse the ALBO Zip Ties collection to compare available sizes and ratings, and choose rated support hardware whenever the job goes beyond bundling and cable management.
