Heat-shrink butt connectors are often described as waterproof, but that word needs context. A correctly sized connector, a sound crimp, clean wire, and even heating can create a strong barrier against moisture around a splice. The finished repair is only as dependable as the installation, however, and a product description alone does not turn every splice into a certified submersible connection.
The practical answer is this: heat-shrink connectors can be a good choice for damp, splash-prone, automotive, and similar environments when the connector is designed for the application and installed correctly. Do not assume that every connector, tool, wire, or finished splice has a specific IP rating or unlimited underwater capability unless the exact product documentation says so.
What actually creates the moisture barrier?
A heat-shrink butt connector has two jobs. Its metal barrel must make a secure electrical and mechanical connection between the conductors, while the outer sleeve must recover tightly around the wire insulation. On sealed designs, the sleeve and its sealing material close the small paths where moisture could travel toward the copper.
That means “waterproof” is not a single feature you can evaluate from the sleeve alone. Wire size, insulation diameter, strip length, crimp quality, heat control, and strain relief all affect the final result. A sleeve may look tight while hiding a weak crimp, or the crimp may be sound while one end of the sleeve remains open.
Seven conditions that determine whether the seal works
- Correct wire range: Match the connector to the conductor gauge listed for it. An oversized connector may not crimp or seal around a smaller wire, while an undersized connector can damage strands or the sleeve.
- Compatible insulation diameter: Two wires with the same conductor gauge can have different outside diameters. The recovered sleeve must close around the actual insulation at both ends.
- Clean, undamaged copper: Corrosion, oil, water, or broken strands compromise the connection before heating begins. Cut back to clean conductor when practical.
- Accurate strip length: Exposed copper should sit fully inside the metal barrel without bare conductor extending beyond the insulated body.
- A complete crimp: Use a tool and die suited to insulated heat-shrink terminals. Tug-test each wire before heating. Our step-by-step crimping guide covers the sequence in more detail.
- Controlled, even heat: Move a heat gun around the connector rather than concentrating heat in one spot. Work until the sleeve has recovered evenly, then stop before scorching or splitting it.
- Cooling and strain relief: Let the splice cool without pulling or sharply bending it. Route and support the wire so vibration or tension does not work directly against the crimp.

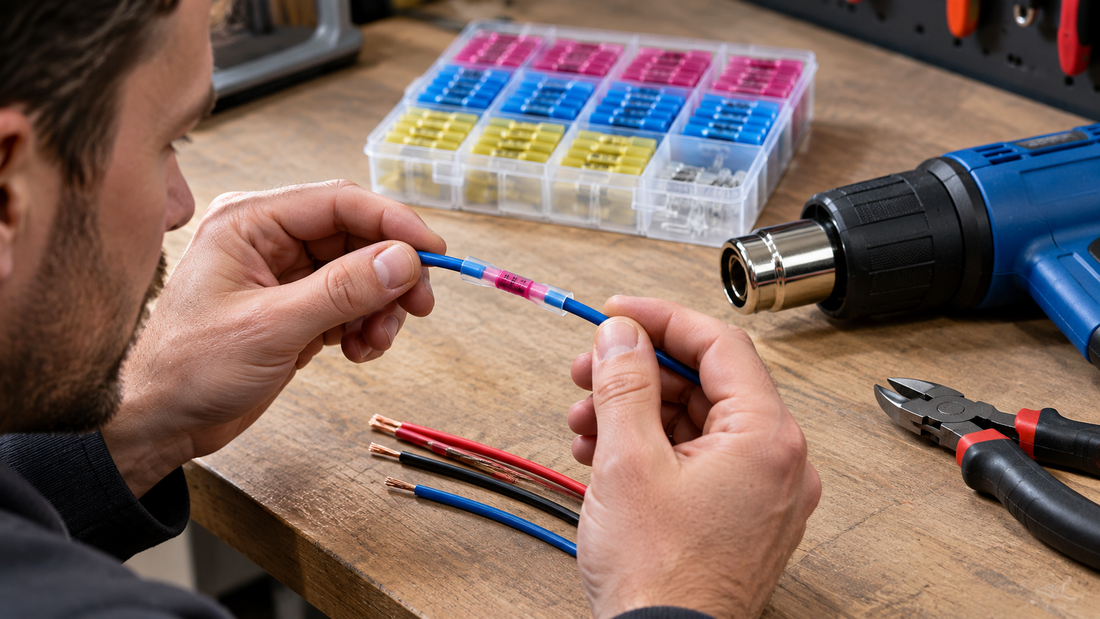

How to inspect a finished heat-shrink splice
Start with the shape of the connector. The sleeve should be evenly recovered around the wire insulation at both ends, with no visible gaps, folds, cuts, bubbles, or burned areas. If the design uses an internal sealant, a small, even indication of sealant at the ends may be normal, but appearance varies by product.
Next, check the mechanical connection. After the splice has cooled, gently tug each wire. Neither conductor should move inside the barrel. Make sure no bare copper is exposed and that the wire enters the connector straight enough to avoid a hard bend at the sleeve edge.
Finally, perform the electrical checks appropriate for the circuit before returning it to service. Visual inspection can reveal obvious defects, but it does not certify an immersion rating. For critical, regulated, or safety-related wiring, follow the equipment manufacturer’s instructions and applicable electrical requirements.
Choose the connector by wire range, not by color alone
The most useful product choice is the one that matches the actual conductor gauge and the range of repairs you perform. A single-size pack makes sense for repeated work on the same wire range. A mixed set is more flexible when a toolbox must cover several common sizes.
ALBO Heat Shrink Butt Connectors 22-16 AWG 500pcs
$24.99
View product →
ALBO Heat Shrink Butt Connectors 26-10 AWG Set 200 PCS
$12.99
View product →
Heat Shrink Butt Connectors
Compare single-gauge packs and mixed assortments for automotive, workshop, and general wiring repairs. Match the connector range to the conductor before choosing pack size.
Explore the collection →
What “waterproof” does not automatically mean
A sealed-looking splice is not automatically approved for continuous submersion, direct burial, hazardous locations, household branch-circuit wiring, or every marine installation. Those uses may require a specific connector system, enclosure, rating, listing, or installation method. The surrounding cable, terminals, equipment housing, and routing also affect the reliability of the complete circuit.
A heat-shrink connector should not be used to justify a repair that is otherwise prohibited. De-energize the circuit, follow the equipment documentation, and use qualified help when the application involves mains voltage, life-safety equipment, or rules you are not equipped to evaluate.
Common reasons a sealed splice fails
Wrong connector size: The barrel may not grip the conductor and the sleeve may not close around the insulation. Replace it with the correct wire range rather than adding extra heat.
Weak or misplaced crimp: Heating cannot repair a poor electrical connection. If a tug test reveals movement, cut out the connector and remake the splice.
Too little heat: The sleeve can remain loose or uneven. If the crimp is sound and the sleeve is undamaged, carefully completing the recovery may be possible according to the product instructions.
Too much heat: Scorching, cracking, thinning, or bubbling can damage the sleeve and nearby insulation. Replace a visibly damaged connector.
Contamination: Moisture, oil, oxidation, and dirt can interfere with both the conductor connection and the seal. Prepare clean wire before installing a new connector.
Unsupported movement: Vibration and repeated flexing can stress the conductor at the edge of the splice. Add appropriate routing and strain relief instead of letting the connector carry the load.
Quick answers
Can a heat-shrink connector be submerged?
Only treat it as suitable for submersion when the exact connector system and installation have documentation for that use. A general “waterproof” product description is not enough to establish depth, duration, or test conditions.
Should I use a lighter or torch?
A controlled heat gun is easier to move evenly and reduces the risk of scorching the sleeve or wire insulation. Avoid an open flame unless the manufacturer explicitly allows a defined method and the work environment is safe for it.
Can I reheat a connector that did not seal?
If the crimp is secure, the sleeve is intact, and recovery is simply incomplete, careful reheating may finish the job. Replace the connector if the sleeve is split or burned, the crimp is loose, contamination is present, or repeated heating still leaves a gap.
Bottom line
Heat-shrink butt connectors can provide a dependable moisture-resistant splice, but the finished seal depends on correct sizing, clean preparation, a solid crimp, even heating, cooling, routing, and inspection. Choose by conductor range, verify the finished connection, and reserve stronger “waterproof” or submersible claims for installations backed by specific product documentation.
