How to Crimp a Heat-Shrink Butt Connector the Right Way
A heat-shrink butt connector makes a compact in-line splice while adding insulation and environmental protection around the crimp. The connector can work well in automotive, marine, outdoor equipment, and general repair applications, but the result depends on more than simply squeezing the barrel and warming the sleeve. Wire preparation, connector size, die selection, crimp placement, and heat control all matter.
This guide explains a practical installation sequence for insulated heat-shrink butt connectors. Always follow the connector maker’s instructions, the crimp-tool directions, and any equipment-specific service requirements. Disconnect power before working, and use a qualified professional when the circuit or application is beyond your training.

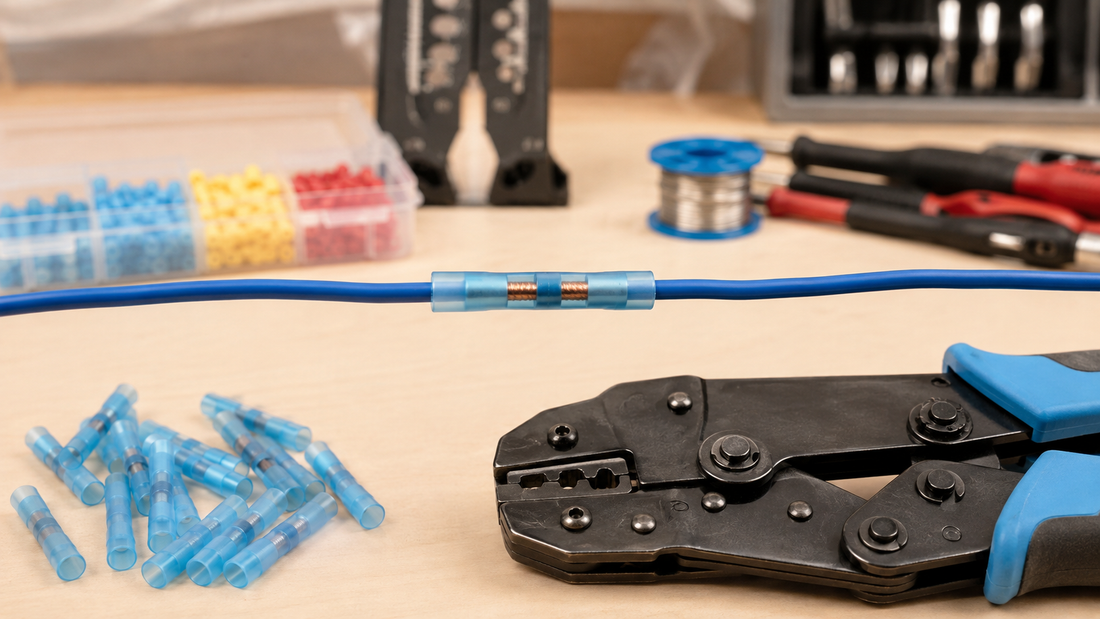

What You Need Before Starting
- A butt connector sized for the conductor gauge and application
- A wire stripper that matches the conductor size
- A crimping tool with the correct die for insulated heat-shrink terminals
- A controlled heat source, typically a heat gun with a suitable nozzle
- Clean cutters and, when appropriate, eye protection
Choose the connector by conductor gauge rather than color alone. Color conventions are useful, but they are not a substitute for reading the connector and tool specifications. Binam’s heat-shrink butt connector collection includes individual gauge ranges and multi-size sets. For a closer look at common color conventions, see how red, blue, and yellow heat-shrink terminals map to wire gauge.
The conductor must fit the metal barrel correctly. A barrel that is too large may not compress securely; one that is too small may prevent full insertion or damage the strands. If the two wires use different gauges, verify that the selected connector is approved for that combination instead of assuming one end will compensate for the mismatch.
Step 1: De-Energize, Cut, and Inspect the Wire
Shut down the circuit and confirm that it is de-energized. In a vehicle, boat, or machine, follow the manufacturer’s isolation procedure. Cut back to clean conductor if the wire end is corroded, overheated, nicked, or contaminated. A sealed sleeve cannot repair damaged copper hidden beneath it.
Make a square cut so the strands end evenly. Inspect enough of the surrounding insulation to confirm that it is flexible and intact. If corrosion has traveled under the insulation, continue trimming until the conductor is clean or replace the affected wire section according to the service procedure.
Step 2: Strip the Correct Length Without Damaging Strands
There is no safe universal strip length for every butt connector. Use the strip-length guidance supplied with the connector or measure the metal insertion depth without guessing. The goal is for the bare conductor to sit fully inside its half of the conductive barrel. No bare copper should remain exposed outside the barrel, and wire insulation should not occupy the conductive crimp zone unless the connector design specifically requires it.
Use the stripper opening that matches the wire gauge. Close the tool squarely, remove the insulation, and inspect the strands. A few severed strands reduce the conductor area and change how the barrel fills. If strands were cut, bent sharply, or scraped, trim the end and strip it again. Keep the strands together; do not tin them with solder unless the connector and application instructions explicitly call for that method.
Step 3: Insert the First Wire Fully
Hold the connector where you can see the center stop or feel when the wire reaches it. Insert the stripped conductor straight into one side until it is fully seated. Look through the translucent sleeve when visibility allows. Confirm that all strands entered the barrel and that none folded back along the outside.
Before crimping, check the transition at the connector entrance. The wire insulation should approach the barrel without leaving an exposed conductor gap. Avoid forcing an oversized insulation jacket into a space that distorts the sleeve.
Step 4: Use the Correct Die and Crimp Location
Select the die specified for the connector’s gauge range and insulated-terminal construction. A purpose-built ratcheting crimper can help apply a consistent cycle, but it still must use the correct cavity and orientation. Ordinary pliers, side cutters, and improvised tools can flatten the terminal unevenly, cut the sleeve, or leave the barrel loose.
Place the metal barrel—not the empty heat-shrink skirt—in the die. Align the tool so the crimp forms on the conductor barrel and does not strike the center stop. Keep the connector straight while completing the crimp cycle. If the tool has a seam-side orientation requirement, follow its instructions; terminal and die designs vary.
Insert and crimp the second wire using the same sequence. Do not twist the connector to correct poor alignment after crimping, because that can stress the strands at the barrel edge.
Step 5: Perform a Tug Test Before Heating
Grip the wire and connector without pulling on nearby components, then apply a firm, controlled axial tug to each side. The conductor should not move in the barrel. This is a workmanship check, not a destructive pull test and not a substitute for any required calibrated test.
If a wire slips, do not try to rescue the splice by heating it or crimping randomly in several places. Cut off the connector, identify the cause, and restart with a new connector. Common causes include the wrong gauge range, incomplete insertion, a mismatched die, or a partial crimp cycle. For more context on where butt splices fit, read butt connectors versus wire nuts for automotive and outdoor wiring.
Step 6: Shrink the Sleeve With Controlled, Even Heat
After both crimps pass inspection, position the splice away from fuel, solvent residue, sensitive components, and other heat-damaged materials. Use a heat gun rather than an open flame unless the product maker explicitly authorizes another method. An open flame can scorch insulation, ignite nearby material, or heat the connector too aggressively.
Warm the sleeve gradually and evenly. Rotate the wire or move the heat source around the connector so one side does not overheat. A practical approach is to begin near the center and work toward the ends, allowing the tubing to recover around the barrel and wire insulation. Keep the heat source moving and use the connector maker’s temperature and distance guidance.
Stop when the sleeve has recovered uniformly and the sealing adhesive is visibly present at the ends when that is part of the connector design. More heat is not better. Bubbling, discoloration, charring, splitting, or deformed wire insulation indicates overheating. Let the splice cool naturally before bending, loading, or energizing it.
Step 7: Inspect, Support, and Protect the Finished Splice
Once cool, inspect the entire connector. The sleeve should be smooth and closely formed around both wire jackets, without punctures, burned areas, sharp folds, or exposed conductor. Both wires should remain aligned with the connector, and the splice should pass another gentle tug check.
Route the wire so the splice is not used as a hinge or tension point. Add appropriate support where vibration or movement could flex the conductor at the barrel edge. Keep the splice away from sharp edges, exhaust heat, moving parts, and standing water whenever the installation allows. A heat-shrink connector improves environmental protection, but correct routing remains essential.
For wet or corrosive locations, connector selection and installation details should match the environment and applicable standards. Review what to look for in heat-shrink connectors for marine and outdoor wiring before treating any splice as suitable for continuous exposure.
Common Crimping Mistakes to Avoid
- Using a universal strip length: Barrel depths differ. Verify the required length for the connector in hand.
- Matching by color only: Confirm the printed or documented gauge range and the conductor size.
- Crimping with pliers: Use a compatible crimp die designed for the terminal.
- Heating before testing: Perform the tug test while the crimp can still be evaluated clearly.
- Applying heat in one spot: Move the heat source to shrink the sleeve evenly.
- Reusing a failed connector: Cut it off, correct the setup, and install a new one.
- Leaving the splice unsupported: Protect it from tension, vibration, abrasion, and repeated flexing.
Final Installation Checklist
- The connector matches the wire gauge and application.
- The conductor is clean, and no strands were cut during stripping.
- Each wire is fully inserted with no bare copper exposed.
- The correct die completed a full crimp on each side.
- Both crimps passed a controlled tug test before heating.
- The sleeve was heated evenly without scorching or deformation.
- The cooled splice is sealed, aligned, supported, and safely routed.
A dependable heat-shrink butt splice is the result of a repeatable sequence: select, strip, insert, crimp, test, heat, and inspect. Skipping one step can hide a weak mechanical connection beneath a neat-looking sleeve. Taking a few extra minutes before energizing the circuit helps make the finished repair easier to trust and easier to inspect.
