Choosing a piano hinge by length alone can lead to poor clearance, weak fastening, or a door that binds. The correct hinge must fit the panel edge, provide enough leaf width for secure screws, and leave room for the knuckle to rotate without contacting the cabinet.
Use the measurements below before ordering or drilling.

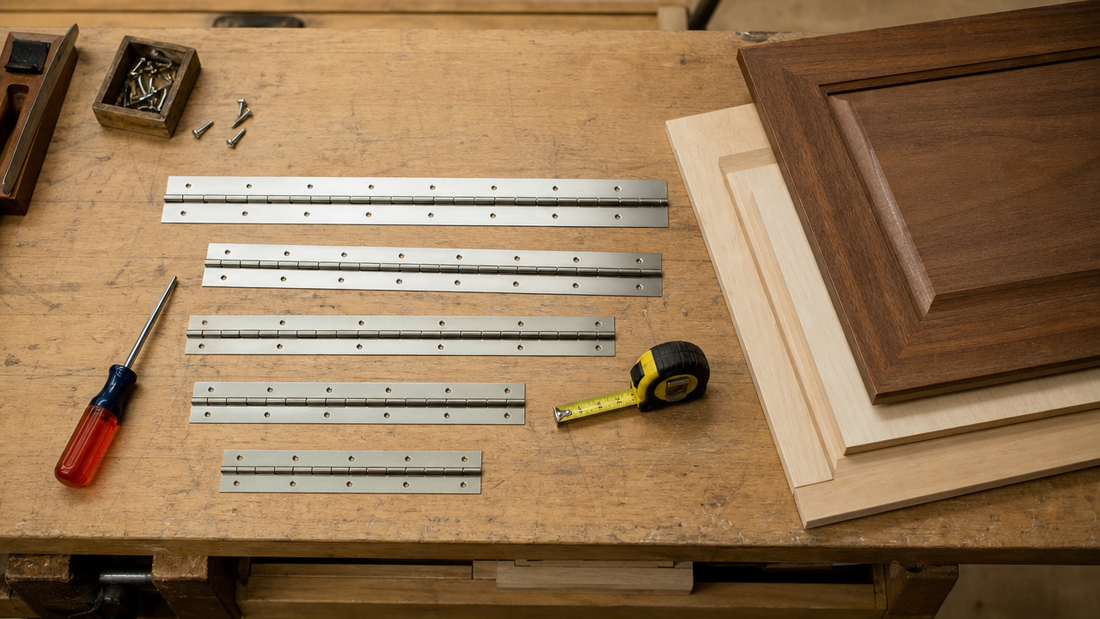

1. Measure the Required Hinge Length
Measure the straight mounting edge of the door or lid. Decide whether the hinge should run nearly the full length or stop short at both ends for clearance. A continuous hinge does not always need to match the panel exactly, but it should support the area that carries the load.
For a framed cabinet door, check whether trim, shelves, end caps, or adjacent doors reduce the usable hinge length. For lids, verify that the hinge will not interfere with corner hardware or weather seals.
2. Understand Open Width and Leaf Width
The advertised width of a piano hinge is commonly the total width when the hinge is opened flat. Each leaf is approximately half of that width, excluding the effect of the center knuckle. Confirm the product drawing rather than assuming every hinge with the same length has the same leaf width.
Leaf width determines how much surface is available for fasteners. A wider leaf can place screws farther from a weak edge, but it also requires more flat mounting area. Measure both the door leaf and cabinet leaf locations.
3. Check Knuckle, Pin, and Swing Clearance
The center knuckle and pin need a clear path as the door rotates. Decide whether the hinge will be surface-mounted, recessed, or mounted on the inside face. Test the proposed position with the door at closed, half-open, and fully open angles.
Also account for paint, edge banding, seals, and surface coverings. Small clearance errors along a long hinge can create binding across the entire door.
4. Confirm Hinge Thickness and Door Gap
Hinge thickness affects the closed gap and the position of the door. If the hinge is surface-mounted, its stacked leaves may hold the door away from the cabinet. A recessed installation can reduce that gap but requires accurate routing or chiseling.
5. Match Fasteners to the Mounting Material
- Solid wood: use suitable pilot holes and screws long enough to develop holding power without breaking through.
- Plywood or engineered panels: keep screws away from weak edges and confirm the material can hold repeated load.
- Metal enclosures: use the correct screws, rivets, threaded inserts, or other specified fasteners.
- Outdoor projects: match corrosion resistance across hinge and fasteners.
Install a few center and end fasteners first, verify alignment and movement, then complete the remaining holes. Do not force a misaligned hinge into position with screws.
ALBO Piano Hinge Length Options
The cards below show common length choices. Verify open width, leaf width, thickness, hole pattern, and clearance on the product page before ordering.
Short continuous hinge for smaller lids, access panels, and compact cabinet projects.
Mid-length option for display cases, benches, cabinets, and equipment panels.
Long continuous hinge for compatible full-height panels and larger lids.
Extended-length option for large cabinets, workbench lids, and commercial displays.
Find the Right Piano Hinge Size
Compare stainless-steel continuous hinges from compact 12-inch options to extended 48-inch lengths.
Shop Piano HingesFrequently Asked Questions
Can a piano hinge be cut to length?
Some continuous hinges can be cut with suitable metalworking tools, but cutting can create sharp edges, damage the finish, or affect the pin. Follow the product manufacturer’s instructions and deburr the cut safely.
Should hinge length equal door length?
Not necessarily. It should provide the required support while leaving clearance for surrounding hardware and cabinet features.
What does a 2-inch piano hinge width mean?
It generally refers to the hinge’s open width, but always verify the product drawing. The usable width of each leaf will be less than the total open dimension.
