The correct piano hinge is not chosen by length alone. You also need to confirm the open width, leaf width, knuckle position, material, finish, mounting surface, and fastener layout.
The dimensions that matter
| Dimension | What it describes | Why it matters |
|---|---|---|
| Overall length | End-to-end hinge length | Determines how much of the door or lid edge is supported |
| Open width | Total width with both leaves flat | Must fit the available mounting surfaces |
| Leaf width | Width of each side from edge to pin area | Controls screw placement and edge clearance |
| Thickness | Metal gauge of the leaves | Affects stiffness, clearance, and fastener seating |
| Knuckle and pin size | Diameter of the pivot section | Affects projection and rotation clearance |

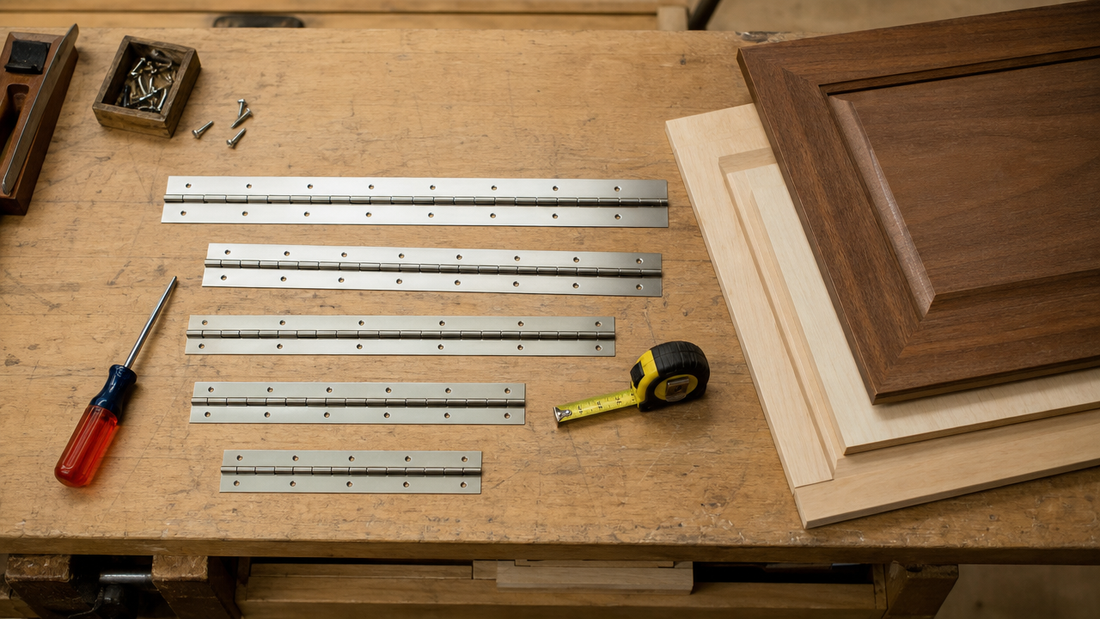

Step 1: Measure the panel edge
Measure the usable straight edge of the door, lid, or access panel. Exclude rounded corners, latches, seals, obstructions, and areas where screws cannot be installed.
A hinge can match nearly the full edge or be shorter. Full-length coverage maximizes load distribution, while a shorter hinge can leave room for hardware or simplify installation.
Step 2: Decide how much length you need
- Small boxes and compact doors: 12- or 16-inch hinges may provide sufficient coverage.
- Cabinets, workbench lids, and display cases: 24- or 30-inch hinges are common starting points.
- Long enclosures and equipment panels: 36- or 48-inch hinges provide broader support.
These are fit categories, not load ratings. Confirm the complete assembly for the actual panel weight and use conditions.
Step 3: Check open width and leaf width
The open width must fit across the two mounting surfaces without placing screw holes too close to an edge. For a surface-mounted hinge, lay out both leaves on the closed assembly and confirm that the pin is positioned where the panel can rotate without binding.
If the leaves are too wide, they may interfere with trim, seals, recesses, or nearby hardware. If they are too narrow, the screws may not have enough edge distance or holding area.
Step 4: Verify movement and clearance
Temporarily position the hinge and move the panel through the intended opening angle. Check for contact at the knuckle, panel edge, frame, weather seal, or surrounding hardware. Paint and surface finishes also add thickness and can reduce tight clearances.
Step 5: Match material and finish
Stainless steel is commonly selected for toolboxes, marine-adjacent work, outdoor cabinets, and utility enclosures because it offers useful corrosion resistance. Black finishes suit dark cabinetry and equipment, while silver provides a conventional industrial appearance.
Use compatible fasteners. Mixing materials in damp environments can contribute to corrosion, and decorative coatings do not replace appropriate base material selection.
Step 6: Review the hole pattern
Confirm that the existing hole spacing works with the substrate. Thin panels may need backing, rivets, through-bolts, or another fastening method rather than ordinary wood screws. Avoid enlarging or relocating holes unless the hinge and installation design allow it.
Available Binam sizes
- 12-inch silver piano hinge, 2-pack
- 12-inch black piano hinge, 2-pack
- 16-inch silver piano hinge, 2-pack
- 24-inch silver piano hinge, 2-pack
- 24-inch black piano hinge, 2-pack
- 30-inch black piano hinge, 2-pack
- 36-inch silver piano hinge, 2-pack
- 48-inch black piano hinge, 2-pack
FAQ
Should a piano hinge run the full length of the door?
Not always, but longer coverage generally spreads load over more fasteners and mounting area.
What does a 2-inch piano hinge width mean?
It normally refers to the total open width across both leaves. Always verify the product drawing or specification.
Can a piano hinge be longer than the panel?
It should not project beyond the usable edge. Select a shorter size or cut the hinge using suitable tools if the product permits modification.
Does a thicker hinge always carry more weight?
No. Capacity depends on material, geometry, pin design, fasteners, hole spacing, substrate, and installation quality.
How do I measure a replacement hinge?
Measure the existing overall length and open width, then compare leaf width, thickness, knuckle position, and hole layout.
Compare current sizes and finishes: Piano Hinge Collection.
Safety note: Support heavy lids and doors during installation. Do not rely on the hinge alone to control a falling panel; use appropriate stays, supports, or counterbalance hardware.
