What a solder seal wire connector does
A solder seal wire connector combines three functions in one heat-activated sleeve: it aligns two stripped wire ends, melts an integrated solder ring around the conductors, and shrinks insulation around the splice. When the connector is sized and heated correctly, the result is a compact electrical joint with added insulation and moisture protection.
The Must Have Tools Waterproof Solder Seal Wire Connectors are sold in assorted-size packs for automotive, marine, motorcycle, trailer, and workshop wiring. They do not require a separate crimp connector, but they do require careful wire preparation and even heat. A sleeve that looks shrunken is not automatically a completed splice; the solder must flow into the conductors and the sealing areas must conform around the wire insulation.
Disconnect power and inspect the circuit first
Never install a connector on an energized circuit. Disconnect the battery, unplug the equipment, or isolate the circuit using the correct procedure for the system. Confirm that stored energy and backup power cannot re-energize the wire while you work.
Before cutting anything, identify the conductor material, wire size, voltage, expected current, temperature exposure, movement, and environmental conditions. Follow applicable electrical codes and the equipment manufacturer's requirements. A solder seal connector may be convenient for many low-voltage wiring tasks, but it is not a universal substitute for every terminal, sealed connector housing, crimp standard, or serviceable plug.
Choose a connector that matches the wire
Select the sleeve size using the actual wire and the size guidance supplied with the product. The stripped conductors need enough room to overlap inside the solder ring, while the heat-shrink ends need to close around the insulated portions of both wires.
A sleeve that is too small may not accept the conductor overlap or may place excessive stress on the insulation. One that is too large may shrink without gripping and sealing the wire ends. Do not choose by color alone unless the package explicitly maps that color to the wire size you are using.
If two wires have different outside diameters, check both ends of the sleeve before installation. The connector must fit the conductor joint and shrink appropriately around each insulation diameter.
Prepare clean conductor ends
- Cut away damaged, corroded, overheated, or contaminated wire until clean material is exposed.
- Slide the solder seal connector over one wire before joining the conductors.
- Strip only enough insulation to create the required overlap beneath the solder ring.
- Avoid nicking or removing strands while stripping.
- Keep the bare conductor free of oil, moisture, adhesive, and oxidation that could interfere with solder flow.
Twist the strands only enough to keep them organized. Do not create a bulky knot that prevents the conductors from overlapping inside the sleeve. If the wire has severe oxidation or heat damage extending under the insulation, replacing a longer section may be safer than trying to seal the damaged portion inside a connector.
Position the wires and center the solder ring
Overlap the stripped conductor ends inside the connector. Center the solder ring directly over the full conductor overlap, not over insulation and not at the edge of the stripped section. The insulated wire should extend into both sealing ends of the sleeve.
Support the wires so they remain aligned without being held under tension. A helping fixture or heat-resistant support can keep the joint still while leaving space around the sleeve for hot air. Avoid gripping the sleeve with metal pliers where the jaws could block heat, deform the tubing, or puncture the softened material.
Before heating, make one final check: the conductors overlap, the solder ring covers the joint, the sleeve ends sit over intact insulation, and the wires will not move when the tubing begins to shrink.
Use controlled hot air rather than an open flame
Use a suitable hot-air tool and follow its instructions. Move the heat around the connector so all sides warm gradually. Holding intense heat in one spot can scorch the sleeve, damage wire insulation, or shrink one end before the solder area reaches the temperature needed to flow.
Begin by gently shrinking the center area enough to stabilize the conductors, then continue heating the solder ring evenly. Watch for the solder to soften and flow into the wire strands. After the center joint forms, work toward the sealing ends until the tubing conforms around the insulation.
An open flame is difficult to control and can burn the tubing or insulation before heat reaches the joint evenly. It can also ignite nearby materials or leave soot on the connection. Controlled hot air provides a more repeatable installation.
Know what a completed joint should look like
The solder ring should no longer look like an untouched solid band. It should appear to have flowed into and around the overlapped conductors. The wires should remain centered, and the sleeve should sit smoothly without holes, deep burns, or sharply collapsed sections.
At both ends, the heat-shrink material should conform to the wire insulation. A visible gap, loose end, split sleeve, scorched spot, or conductor pushed partly outside the solder zone is a reason to remake the splice rather than cover the defect.
Do not pull on the wires while the solder and tubing are still hot. Hold the splice still and let it cool naturally. Moving the connection during cooling can disturb conductor alignment or stress the softened joint.
Inspect the splice after cooling
Once the connector is cool, examine it from every side under good lighting. Check that:
- the solder has flowed through the conductor overlap;
- the sleeve is not burned, punctured, or split;
- both sealing ends fit closely around intact insulation;
- no bare conductor extends beyond the protected section;
- the wires remain aligned without a sharp bend at either sleeve end;
- the joint passes the inspection or electrical test required for the system.
A light mechanical check may be appropriate only after the splice has cooled, and it should not replace the system's required electrical verification. Do not use excessive force that could damage a correctly made joint.
Common reasons solder seal connectors fail
- Wrong sleeve size: the ends do not seal or the conductor overlap does not fit.
- Dirty or oxidized wire: contamination prevents consistent solder wetting.
- Too little heat: the tubing shrinks, but the solder ring remains largely unchanged.
- Too much concentrated heat: the sleeve scorches, thins, bubbles, or damages adjacent insulation.
- Heating only one side: the visible surface changes while the hidden side remains incomplete.
- Wire movement during heating: the overlap shifts away from the center of the solder ring.
- No strain relief: repeated flexing occurs directly at the edge of the rigid splice.
- Treating moisture protection as unlimited: a completed heat-shrink seal should not be assumed suitable for permanent submersion or every chemical environment unless the exact product and installation are rated for it.
Solder seal versus heat-shrink crimp connectors
Solder seal connectors form the electrical joint by melting the integrated solder ring. Heat-shrink butt connectors use a mechanical crimp to secure the conductor and heat primarily to shrink and seal the insulation. The tools, installation checks, and failure modes are therefore different.
If your project uses crimp-style terminals, follow our separate guide on how to crimp heat-shrink butt connectors. Do not apply a solder-only procedure to a crimp connector or skip a required crimp because both products have heat-shrink insulation.
Plan routing and strain relief
A good splice can still fail if the harness bends sharply at the sleeve or rubs against a moving or abrasive surface. Route the repaired section away from heat sources, sharp edges, hinges, and components that move relative to one another. Support the harness on both sides so vibration and pulling forces are not concentrated at the joint.
In vehicles, trailers, and boats, leave enough service slack for expected movement without allowing the wire to reach rotating parts or hot surfaces. Use appropriate loom, clips, grommets, and strain relief where the installation requires them.
Choosing an assorted pack

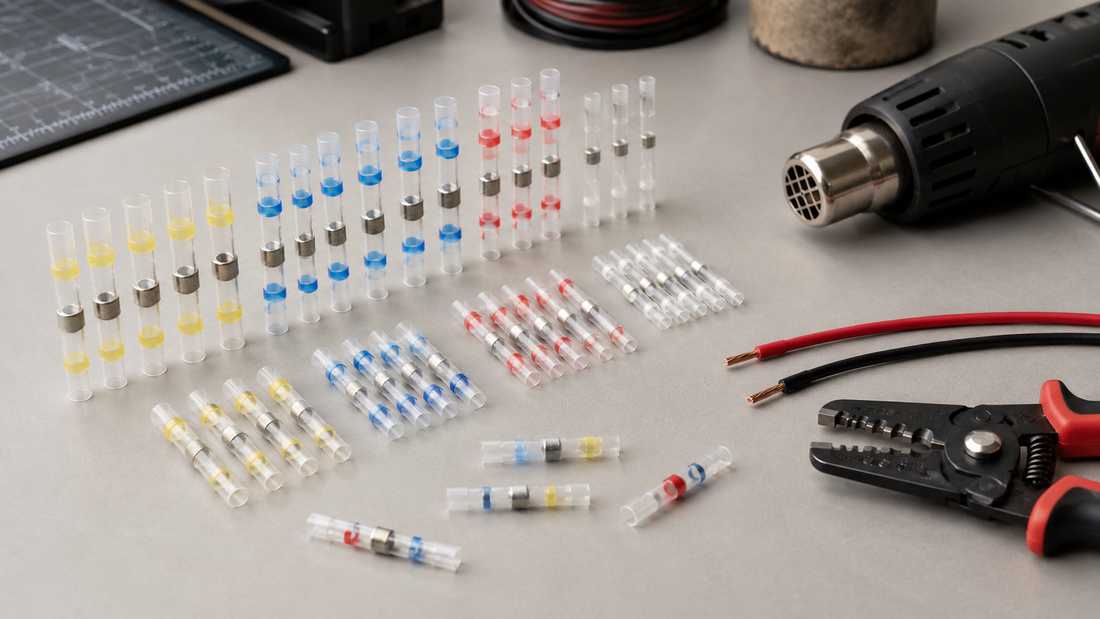

The product is available in 100-, 200-, 300-, and 500-piece options. The useful pack size depends on how many wire sizes and repairs your workshop regularly handles. Assorted packs are convenient only when the connector selected for each splice still matches the actual wire; inventory quantity should never replace size verification.
View the available pack options on the product page, or browse other selected workshop items in Top Products.
Final installation checklist
- Power is disconnected and the circuit is correctly identified.
- The connector size matches both wire ends.
- The conductors are clean, undamaged, and overlapped beneath the solder ring.
- The sleeve is heated evenly with a suitable hot-air tool.
- The solder visibly flows before heating is complete.
- The sealing ends conform around intact insulation.
- The joint cools without movement.
- Routing, strain relief, and required electrical testing are complete.
The most reliable result comes from treating preparation, solder flow, sealing, and routing as separate checks. If any one of them is uncertain, cut out the connector and remake the splice with clean wire and a correctly sized new sleeve.
