A piano hinge can look simple because it is one long continuous hinge, but that length makes alignment errors easy to amplify. A small offset at one end can turn into a visible gap, uneven motion, or binding at the other end. The key is to establish a straight reference, drill appropriate pilot holes, and tighten the screws in a controlled sequence instead of fastening every hole from one end to the other.
Table of Contents
- Why piano hinges drift or bind
- Prepare the hinge and mounting surfaces
- Choose and drill pilot holes
- Use the right screw order
- Prevent binding
- Common installation mistakes
- Piano hinges for common projects
- FAQ
Why a Long Piano Hinge Can Drift or Bind
Unlike two or three separate hinges, a continuous hinge creates one long alignment line. If the hinge leaf is bowed, the workpiece is warped, the first screws pull the hinge off the reference line, or the leaves are installed with insufficient knuckle clearance, the entire hinge can resist movement.
Before drilling, verify that the hinge is straight, the mating surfaces are flat enough for the application, and the knuckle has room to rotate without rubbing the edge of the panel or frame.
1. Prepare the Hinge and Mounting Surfaces
- Confirm the hinge length and open width fit the project.
- Mark a straight reference line on the cabinet, lid, box, panel, or frame.
- Position the hinge with the knuckle consistently spaced from the edge.
- Clamp the hinge or use removable tape so it cannot creep while marking holes.
- Test the intended swing before committing to every fastener.
For a long hinge, establish the position at both ends before marking the middle. This prevents a gradual diagonal drift that can be hard to see until several screws are installed.

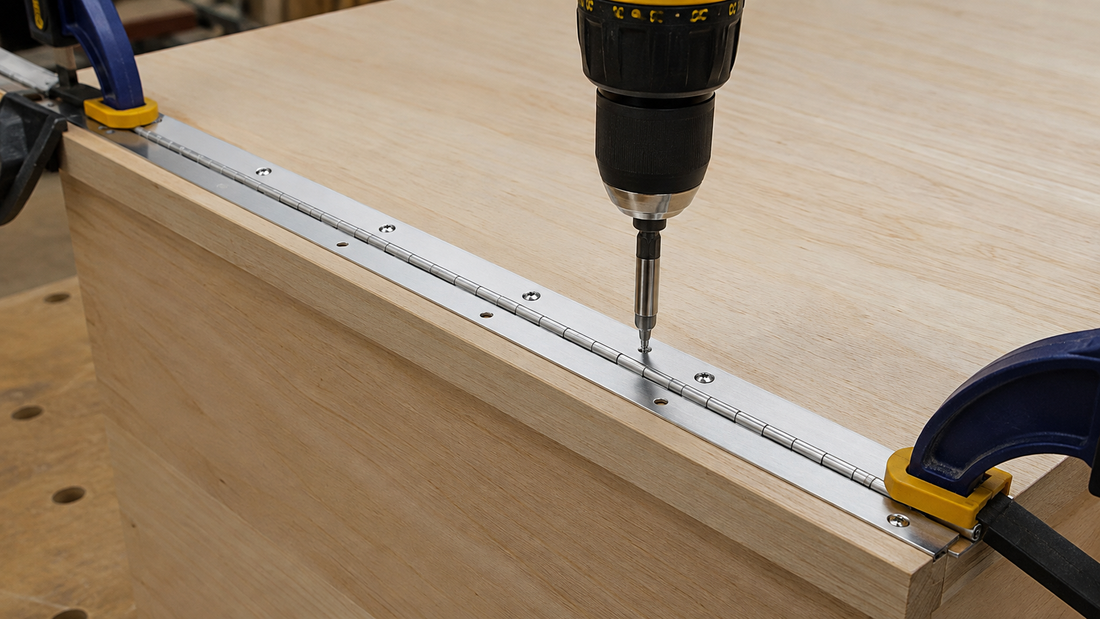

2. Drill Pilot Holes That Match the Screw and Material
There is no single pilot-bit size for every piano hinge installation. The correct pilot depends on the screw diameter, screw type, and substrate. In wood, a useful starting principle is to choose a pilot close to the screw's root or minor diameter while leaving enough material for the threads to bite. Dense hardwood generally needs a more generous pilot than softwood.
Drill perpendicular to the surface and control depth so the pilot is deep enough for the screw without breaking through the workpiece. If the hinge manufacturer specifies a screw or pilot size, use that specification first.
3. Fasten in a Sequence That Preserves Alignment
Do not start at one end and drive every screw in order. A better sequence is:
- Install one screw near the first end, only snug.
- Recheck the reference line and install one screw near the opposite end.
- Test hinge motion and edge alignment.
- Add a screw near the center.
- Alternate between sections of the hinge, working outward and filling remaining holes.
- Only after motion is confirmed should the fasteners receive their final snug tightening.
This sequence gives you multiple chances to correct small errors before the entire hinge is locked in place.
4. Prevent Binding Before It Becomes Permanent
If the hinge feels tight after the first few screws, stop. Check whether the hinge leaves are being pulled out of plane, whether the knuckle is rubbing an edge, or whether the panel is being forced into a twisted position. Over-tightening a screw can locally distort a thin hinge leaf or pull it into a recess that is not flat.
Open and close the assembly after the first two or three screws, again after the center screw, and again before installing the final screws. Smooth movement during each stage is more important than immediately filling every mounting hole.
Common Piano Hinge Installation Mistakes
- Using the hinge itself as the only straightedge: establish an independent reference line.
- Skipping pilot holes: this can split wood, strip screw heads, or pull the hinge sideways.
- Driving screws fully on the first pass: keep them snug until alignment is verified.
- Fastening sequentially from one end: accumulated error can shift the far end.
- Ignoring knuckle clearance: a perfectly straight hinge can still bind if the moving parts rub the project edge.
Piano Hinges for Common Projects
ALBO 16 Inch Silver Heavy Duty Stainless Steel Piano Hinge 2-Pack
ALBO 24 Inch Silver Heavy Duty Piano Hinge Continuous Stainless Steel 2-Pack
ALBO 30 Inch Black Heavy Duty Stainless Steel Piano Hinge 2-Pack
ALBO 36 Inch Silver Heavy Duty Stainless Steel Piano Hinge 2-Pack
FAQ
Should I install all piano hinge screws?
Use the mounting pattern and fastener requirements appropriate to the hinge and application. During alignment, however, install only a few screws first so you can test motion before completing the fastening pattern.
Why does my piano hinge bind after tightening?
Common causes include misalignment, inadequate knuckle clearance, a warped mounting surface, or screws that pull the hinge leaves out of plane.
Do I always need pilot holes?
Pilot-hole requirements depend on the screw, substrate, and manufacturer instructions. For many wood installations, pilot holes improve control and reduce splitting or screw damage.
