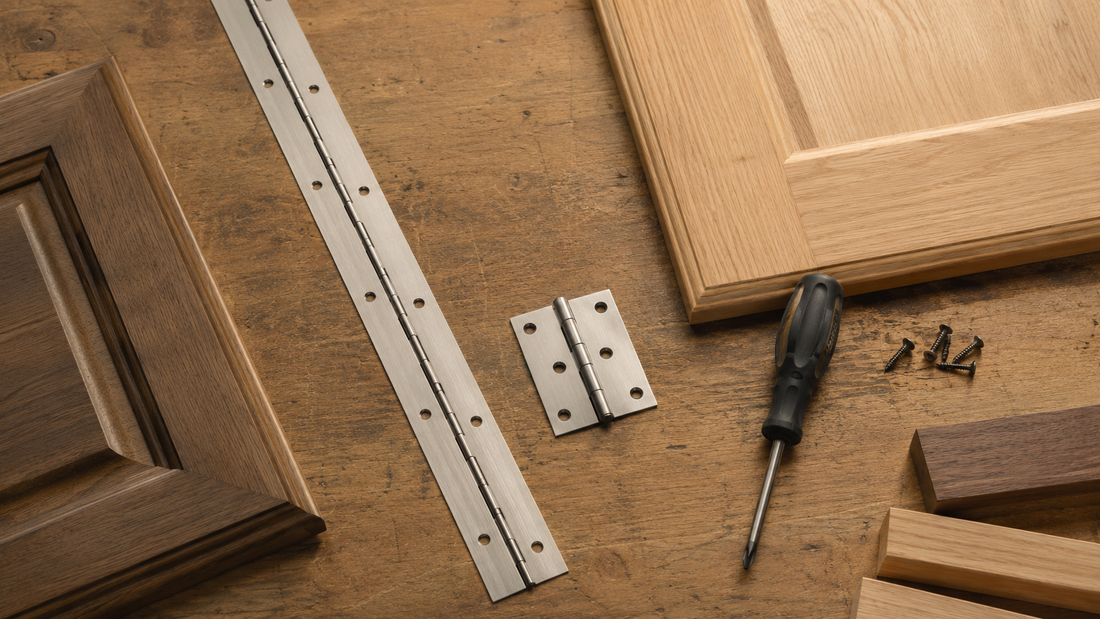

Cabinet doors can use either a continuous piano hinge or several standard hinges. Both designs allow the door to pivot, but they distribute load, control alignment, and handle repeated use differently.
Quick comparison
| Factor | Piano hinge | Standard hinges |
|---|---|---|
| Load distribution | Across most or all of the door edge | Concentrated at individual mounting points |
| Alignment | Supports consistent edge alignment | Each hinge must be aligned separately |
| Best for | Long lids, heavy panels, work surfaces, enclosures | Typical cabinet doors and decorative furniture |
| Appearance | Long continuous hardware line | Smaller, less continuous visual footprint |
| Replacement | One long component | Individual hinges can be replaced |
What is a piano hinge?
A piano hinge, also called a continuous hinge, runs along a large portion of the connected edge. Its many knuckles and evenly spaced fastener holes spread the load over a wider area. This can reduce local stress around a small number of screws.
What are standard hinges?
Standard cabinet or butt hinges are installed as separate units. They are familiar, compact, and available in many decorative and concealed styles. Their performance depends on the number of hinges, their spacing, and the strength of the mounting material.
Where piano hinges have an advantage
Long or flexible doors
A continuous hinge helps support long panels that might otherwise sag or twist between isolated hinges.
Repeated heavy use
Toolboxes, access panels, display cases, workbench lids, and equipment enclosures often benefit from distributed support.
Consistent alignment
Because the hinge forms one continuous reference line, it can simplify alignment across the full edge when installed on a straight, properly prepared surface.
Where standard hinges are preferable
Choose standard hinges when you need concealed hardware, adjustable European-style mounting, a decorative finish, or easy replacement of one damaged hinge. They are also practical for ordinary cabinet doors where load and panel length are modest.
Installation considerations
- Confirm that the hinge leaves fit the available mounting surfaces.
- Check door clearance through the full opening angle.
- Use fasteners suited to the substrate and expected load.
- Pre-drill where necessary to avoid splitting wood or breaking screws.
- Support the panel during installation so the hinge is not used as a temporary clamp.
- For outdoor or damp environments, choose corrosion-resistant material and compatible fasteners.
Recommended Binam piano hinges
- 12-inch silver stainless steel piano hinge, 2-pack
- 16-inch silver stainless steel piano hinge, 2-pack
- 24-inch silver stainless steel piano hinge, 2-pack
- 24-inch black stainless steel piano hinge, 2-pack
- 36-inch silver stainless steel piano hinge, 2-pack
- 48-inch black stainless steel piano hinge, 2-pack
FAQ
Are piano hinges stronger than standard hinges?
They often distribute load more evenly, but total capacity still depends on material, dimensions, fasteners, substrate, and installation.
Can a piano hinge be cut shorter?
Many continuous hinges can be cut with suitable metalworking tools, followed by deburring and finish protection where needed.
Do piano hinges prevent doors from sagging?
They can reduce concentrated stress and improve alignment, but they cannot correct a weak panel or inadequate mounting structure.
Are piano hinges suitable outdoors?
Stainless steel is commonly selected for corrosion resistance, but exposure, finish, and fastener compatibility must still be evaluated.
Browse available sizes and finishes: Piano Hinge Collection.
Safety note: Support heavy panels during installation and verify the complete assembly for the expected load before use.
