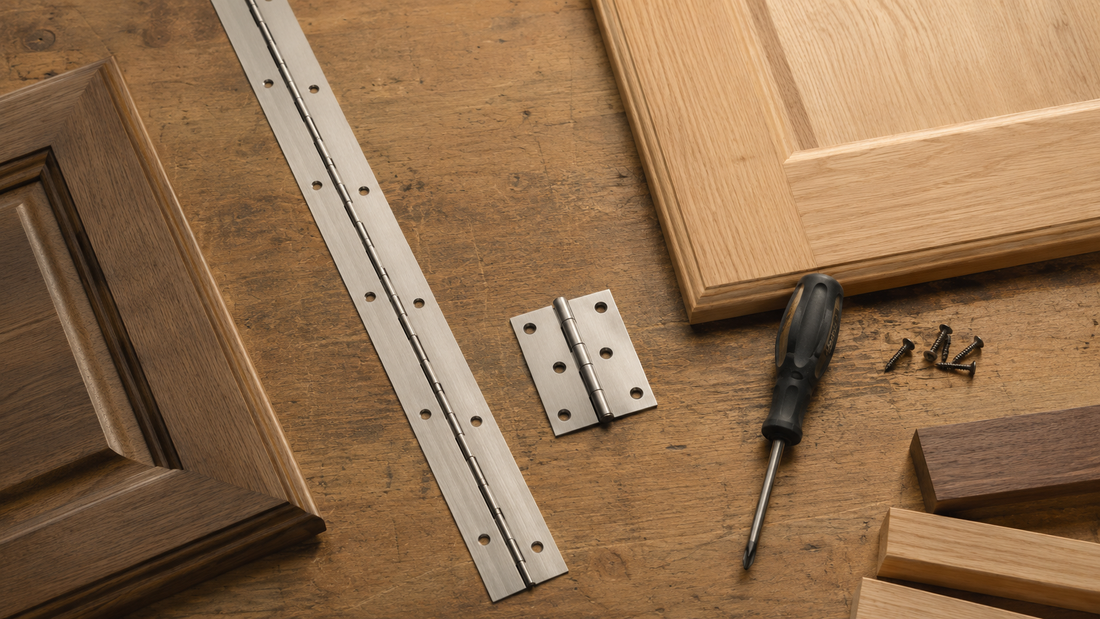

Piano hinges and standard cabinet hinges can both support a door, but they distribute load in very different ways. A continuous piano hinge runs along much of the door edge, while standard hinges concentrate the load at two or three mounting points.
Neither style automatically lasts longer in every cabinet. Service life depends on door size, weight, alignment, material, fasteners, environment, and installation quality. The better choice is the one that matches the project.
Continuous Support vs Concentrated Support
A piano hinge spreads the door load across many fasteners and a long knuckle. This can reduce local stress at the top and bottom hinge positions, help keep a long door aligned, and support lids or panels that would otherwise flex between individual hinges.
Standard butt or concealed cabinet hinges carry the load at separate points. They can be easier to adjust, less visible, and quicker to replace individually. Quality cabinet hinges may also include soft-close or multi-axis adjustment features that a basic continuous hinge does not provide.
Which One Lasts Longer?
For long, narrow, frequently opened, or relatively heavy panels, a correctly sized piano hinge can offer durable alignment because the load is distributed over the full edge. For a typical light cabinet door, properly installed standard hinges may provide long service life with simpler adjustment.
Durability is usually limited by one of these factors:
- Fastener pull-out: screws that are too short or installed in weak material loosen first.
- Misalignment: a twisted cabinet or uneven hinge line forces the knuckle to bind.
- Corrosion: moisture exposure attacks unsuitable hinge or fastener materials.
- Door leverage: a wide or heavy door creates more torque at the mounting edge.
- Repeated impact: slamming accelerates wear regardless of hinge type.
Choose a Piano Hinge When
- The door or lid is long and benefits from support along most of its edge.
- You want to reduce stress concentrations around two or three hinge locations.
- The project is a tool chest, storage bench, display case, access panel, cabinet lid, or equipment enclosure.
- A visible continuous hinge fits the design.
Choose Standard Hinges When
- The door is light and conventional cabinet appearance is important.
- You need concealed hardware, soft-close action, or easy multi-axis adjustment.
- Routing a continuous recess or aligning a long hinge would complicate installation.
- Individual hinge replacement is preferable.
Installation Details That Matter
Confirm the hinge length, open width, leaf width, thickness, knuckle clearance, hole pattern, fastener size, and material before drilling. Support the door in its final position, mark the entire hinge line, drill accurate pilot holes, and install screws progressively from the center outward to avoid introducing a bow.
For outdoor or damp locations, match the hinge and fasteners to the environment. Stainless steel can improve corrosion resistance, but dissimilar metals and trapped moisture still require attention.
ALBO Stainless Steel Piano Hinges
Compact continuous hinge for compatible cabinet, furniture, and enclosure projects.
Mid-length stainless-steel option for lids, display cases, benches, and cabinet applications.
Longer continuous hinge for compatible cabinet doors and storage projects.
Compare Continuous Piano Hinges
Choose by length, finish, project size, and installation requirements.
Shop Piano HingesFrequently Asked Questions
Can a piano hinge be used on a cabinet door?
Yes, when its dimensions, material, fasteners, and clearances suit the door and cabinet. It is especially useful for long doors or panels that benefit from continuous support.
Are piano hinges stronger than standard hinges?
They distribute load across more fasteners, but total capacity still depends on the hinge dimensions, material, fasteners, and mounting surface. Do not rely on hinge style alone.
Do piano hinges need to run the full door length?
Not always, but the selected length should provide the intended support and leave suitable clearance at both ends. Follow the project design and product specifications.
