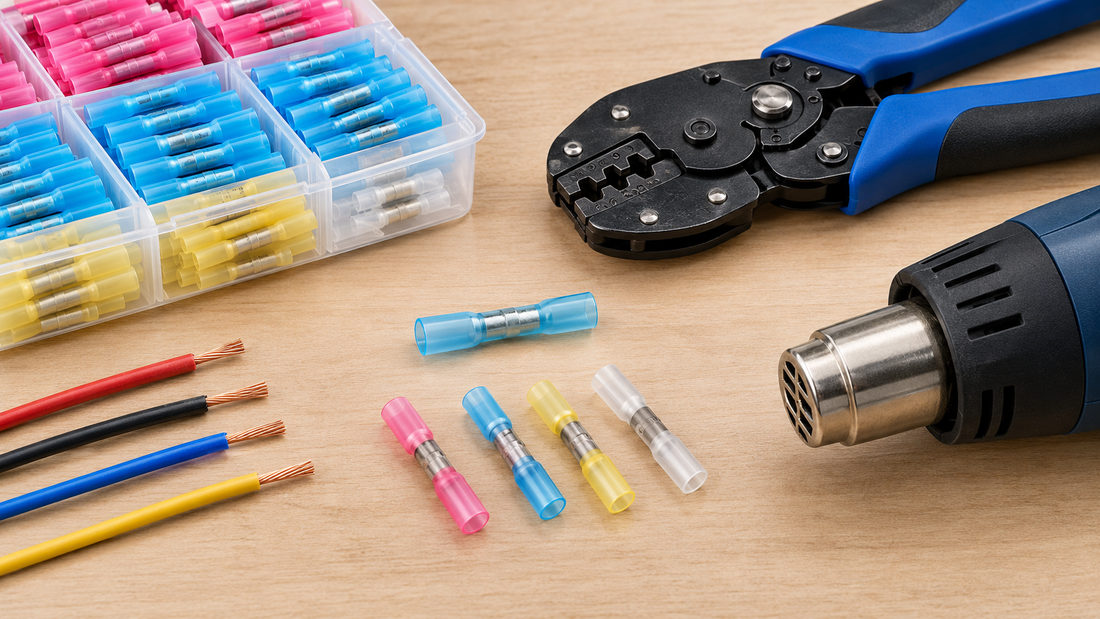

Quick diagnosis: most failures begin before the heat gun
A heat-shrink butt connector can fail electrically, mechanically, or at the environmental seal. The most common causes are a connector that does not match the wire size, an incomplete wire insertion, a crimp made with the wrong die, damaged conductor strands, contamination, or uneven heating.
Heat cannot repair a weak crimp. The metal barrel creates the electrical and mechanical connection; the heat-shrink sleeve adds insulation, strain relief, and protection around the splice. If the barrel is loose before heating, shrinking the outer sleeve may hide the problem without correcting it.
When a splice is intermittent, warm, corroded, visibly damaged, or easy to pull apart, disconnect power and replace it. Do not reheat a questionable connector repeatedly or crimp over an already damaged barrel.
Start by making the circuit safe
Disconnect the battery, unplug the equipment, or isolate the circuit using the procedure specified for the system. Confirm that backup power, capacitors, or another supply cannot energize the wires while you inspect them.
For vehicle, marine, appliance, or building wiring, follow the equipment manufacturer's instructions and applicable electrical requirements. A butt splice may be appropriate for many low-voltage repairs, but it is not a universal substitute for an approved terminal block, sealed plug, serviceable connector, or harness replacement.
Failure 1: the connector does not match the wire gauge
A barrel that is too large may not compress firmly around the conductor. A barrel that is too small may reject the wire, shave strands, or prevent full insertion. Either condition can create a weak mechanical connection and increased electrical resistance.
Choose the connector using the actual conductor size, not only the outside diameter of the insulation. Thick insulation can make a small conductor look larger, while fine-stranded wire can fill a barrel differently from solid wire. Follow the product's size guide and use a step-down splice when two wire sizes require one.
The active ALBO 200-piece heat-shrink butt connector set covers several stated wire ranges from 26 to 10 AWG. Select the individual connector for the wire being joined rather than assuming every piece in the assortment fits every conductor.
Color is a useful sorting aid only when it is tied to the exact product's stated range. For a closer explanation, see Red, Blue, and Yellow Heat-Shrink Terminals: How Color Maps to Wire Gauge.
Failure 2: the wire is not fully inserted
Strip only enough insulation for the conductor to reach its intended position inside the metal barrel. If too little insulation is removed, the conductor may not enter far enough. If too much is removed, bare strands may remain exposed beyond the insulated section.
Before crimping, check that clean conductor strands are fully inside the barrel and that insulation is supported by the sleeve without entering the conductor-crimp area. Avoid twisting the strands into a hard point or folding them back. A few cut or missing strands reduce the conductor cross-section and can make the crimp uneven.
If the wire slips while the tool is closing, stop and replace the connector. A partially crushed barrel should not be opened and reused.
Failure 3: the crimp die or tool is wrong
Heat-shrink butt connectors need a controlled crimp on the metal barrel. Pliers, side cutters, and an unrelated terminal die can flatten, puncture, or over-compress the connector without producing the intended barrel shape.
Use a crimping tool and die compatible with insulated heat-shrink terminals and the selected wire range. Position the metal barrel in the correct die, keep the connector straight, and complete the tool cycle as directed. Do not crimp the heat-shrink sealing ends instead of the metal barrel.
A good crimp should hold the conductor securely before any heat is applied. Perform the inspection or pull check required for the installation. Our complete heat-shrink butt connector installation guide covers wire preparation, crimping, heating, and final inspection in sequence.
Failure 4: the crimp is too light or too aggressive
An under-crimped barrel may let the wire move or pull out. Electrical contact can become intermittent as vibration changes the contact points. An over-crimp can cut strands, split the barrel, or damage the sleeve.
Do not judge crimp quality only by how flat the connector looks. Correct compression depends on the connector design, wire size, and specified tooling. When the tool, connector, or wire is unknown, replace the parts with a verified combination instead of trying to compensate with extra force.
If a completed splice rotates freely on the wire, exposes loose strands, or fails a required pull check, cut it out and start again with fresh conductor and a new connector.
Failure 5: the sleeve shrinks but does not seal
A sleeve can look smaller without forming an even seal at both wire entries. Common causes include an oversized connector, wire insulation that is too small or irregular, dirt or oil on the surface, uneven heating, or movement while the tubing is soft.
Clean and dry the wire insulation before assembly. Center the connector over the splice, support both wires without tension, and heat around the full circumference. Work gradually so the sleeve conforms evenly instead of collapsing on one side.
Do not assume that the word “waterproof” makes every installed splice suitable for permanent submersion, pressure washing, or every chemical environment. Product design and correct installation both matter, and the complete assembly must match the service conditions.
Failure 6: too much heat damages the connector
Concentrating heat in one spot can scorch the sleeve, thin the insulation, force adhesive away from the sealing area, or damage the wire jacket. An open flame is especially difficult to control and can burn material before heat reaches the connector evenly.
Use a suitable hot-air tool and follow the connector and tool instructions. Keep the heat moving around the splice. Stop when the tubing has conformed and the seal is complete; more heat is not automatically better.
Replace a connector that is charred, bubbled, split, punctured, sharply collapsed, or surrounded by damaged wire insulation. Covering the defect with tape or another sleeve does not restore a compromised crimp.
Failure 7: vibration and poor routing break a good splice
Even a properly made connection can fail if the harness bends repeatedly at the edge of the barrel, rubs against metal, hangs under tension, or sits next to a heat source. The splice should not become the hinge point of the wire run.
Route the harness with enough service slack for expected movement, while keeping it away from sharp edges, rotating parts, exhaust components, and pinch points. Use suitable loom, grommets, clips, and strain relief. Support the wire on both sides when vibration could concentrate stress at the connector.
What common symptoms can tell you
- The wire pulls out: suspect the wrong connector size, incomplete insertion, an under-crimp, or an incompatible tool.
- The circuit works only when the wire moves: suspect a loose crimp, broken strands, or flexing near the barrel.
- The splice becomes warm: disconnect power and investigate possible excessive resistance, conductor damage, corrosion, or circuit overload.
- Moisture or corrosion appears: inspect sleeve fit, surface contamination, damage, routing, and whether the connector matches the environment.
- The sleeve is burned or split: replace it and correct the heating method.
- Bare conductor is visible: replace the splice with the correct strip length and connector size.
Symptoms can have more than one cause. A damaged circuit, incorrect fuse protection, excessive current, or a fault elsewhere in the harness may look like a connector problem. Test the complete circuit using the equipment manufacturer's procedure.
A safe repair decision sequence
- De-energize the circuit and confirm it is safe to handle.
- Inspect the connector, wire insulation, routing, and nearby components.
- Check that the connector type and wire range match both conductors.
- Look for exposed strands, sleeve damage, corrosion, discoloration, or movement.
- Perform only the mechanical and electrical tests specified for the system.
- If the crimp or seal is uncertain, cut out the connector rather than reheating or recrimping it.
- Trim back to clean, undamaged conductor and install a new correctly sized connector with compatible tooling.
- Restore routing and strain relief, then complete the required circuit test before returning the equipment to service.
Final prevention checklist
- The circuit is de-energized before work begins.
- The conductor material and wire size fit the exact connector.
- Strands are clean, undamaged, and fully inserted.
- The correct die compresses the metal barrel, not the sealing end.
- The crimp is inspected before heating.
- Hot air is applied evenly without scorching the sleeve.
- Both ends conform around intact insulation.
- The cooled splice receives the required mechanical and electrical checks.
- Routing prevents tension, abrasion, sharp bends, and excessive heat exposure.
Browse the ALBO heat-shrink butt connector collection to compare available wire ranges and pack sizes. The most reliable splice comes from matching the connector, conductor, crimp tool, heating method, and service environment as one complete system.
